![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 125 | 135 | 07P1S100D36DRERX4012 |
100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 128 | 135 | 07P1S/S100D36DRERX4012 |
125 | 36 | 105x80 | 80x60 | 11X9 | 40 | 155 | 160 | 07P1S125D36DRERX5015 |

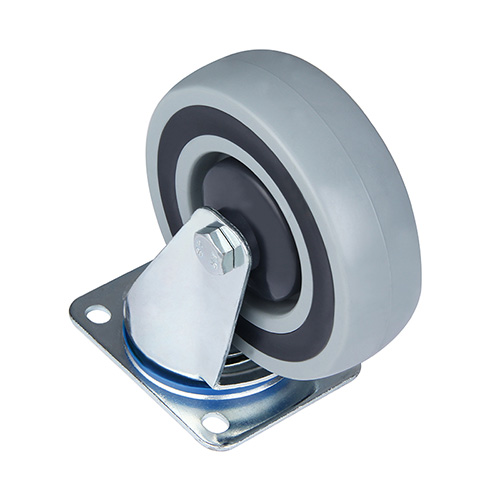

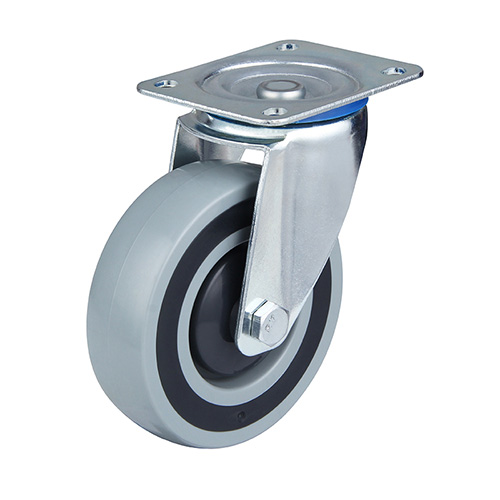

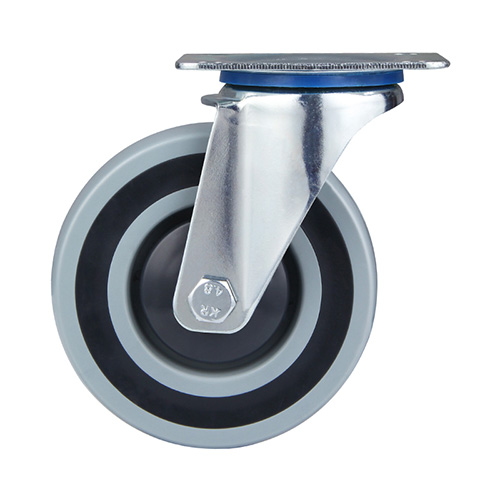

Pressed steel swivel fork assembly, zinc-plated, swivel head with double ball race, grey polypropylene thread, grey polypropylene with dark grey shore a 85"thermoplastic rubber wheel centre, roller bearing,samll metal thread guards
