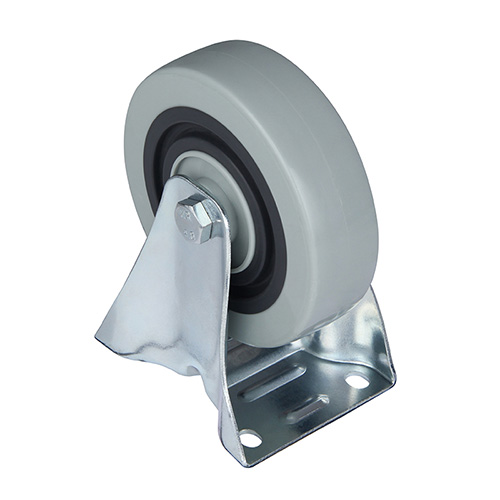

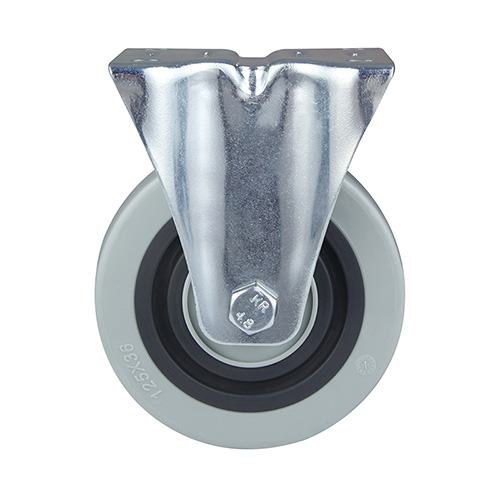

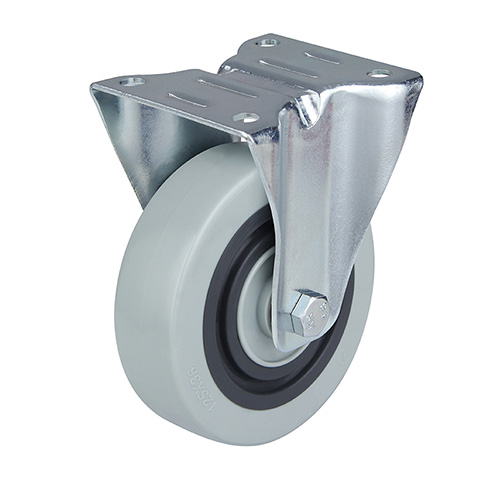

Grey Polyamide Sandwich Fixed Castor with Roller Bearing

Grey Polyamide Sandwich Fixed Castor with Roller Bearing

Industrial Castors , Grey

Housing

fixed_castors

Wheel diameter

100, 100, 125mm

Load capacity

160, 160, 200kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 80

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head grey polyamide wheel centre, grey polyamide and dark grey shore a 80

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Overall height	Load capacity	number
100	36	102x87	80x60	11X9	125	160	07P1F100D36DRARA4012
100	36	102x87	80x60	11X9	128	160	07P1F/S100D36DRARA4012
125	36	102x87	80x60	11X9	155	200	07P1F125D36DRARA5015

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head grey polyamide wheel centre, grey polyamide and dark grey shore a 80" elastic rubber wheel centre, roller bearing, grey samll plastic thread guards
