![]() Wheel Diameter |
![]() Width of Tread |
![]() Offset |
![]() Hole center |
![]() Swivel raidus |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|
100 | 36 | 40 | ф10.5/ф13 | 132 | 124 | 135 | 07H1TB100D36DREBA4208 |
100 | 36 | 40 | ф10.5/ф13 | 132 | 127 | 135 | 07H1TB/S100D36DRBAC4208 |
125 | 36 | 40 | ф10.5/ф13 | 134 | 154 | 160 | 07H1TB125D36DREBA5210 |

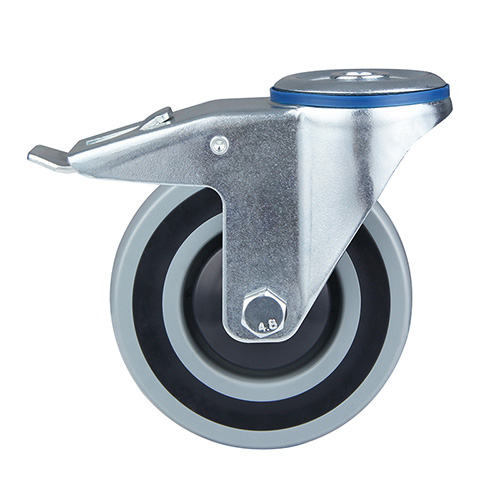

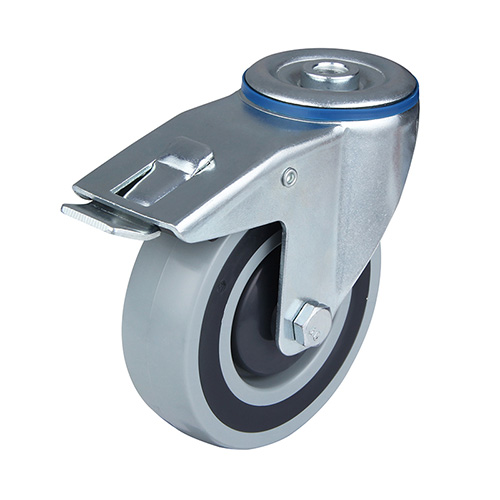

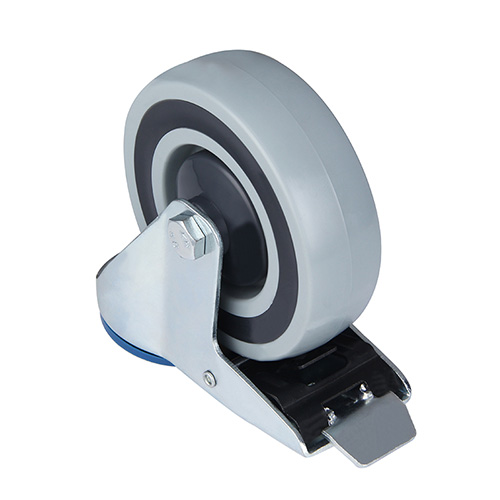

Pressed steel swivel fork assembly, zinc-plated Swivel head with double ball raceGrey Polypropylene thread , Grey Polypropylene with dark Grey Shore A 85" Thermoplastic Rubber wheel centre, Central ball bearing, Dark Grey samll Plastic thread guards
