![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 125 | 135 | 07P1TB100D36DRERX4012 |
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 135 | 07P1TB/S100D36DRERX4012 |
125 | 36 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 160 | 07P1TB125D36DRERX5015 |

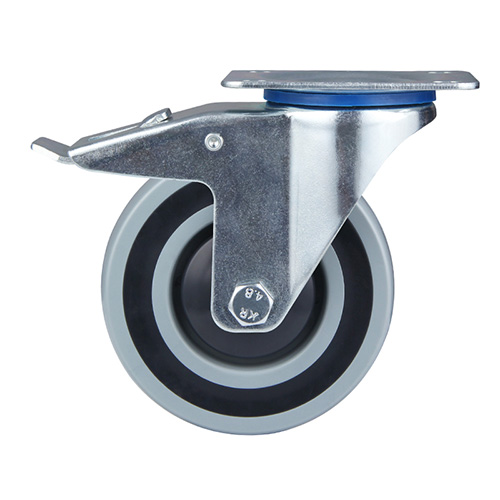

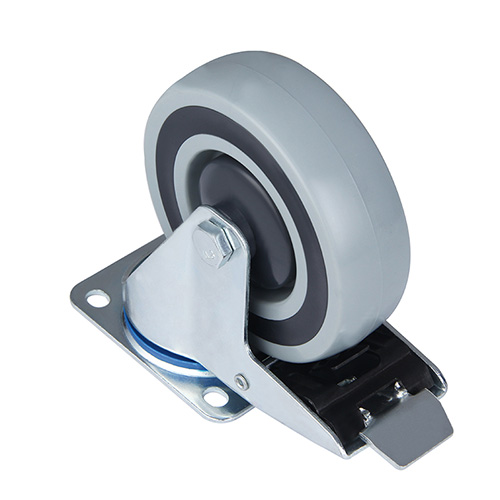

Pressed steel swivel fork assembly, zinc-plated Swivel head with double ball raceGrey Polypropylene thread , Grey Polypropylene with dark Grey Shore A 85" Thermoplastic Rubber wheel centre, Central ball bearing, Dark Grey samll Plastic thread guards
