![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 125 | 160 | 07P1TB100D36DRARA4012 |
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 160 | 07P1TB/S100D36DRARA4012 |
125 | 36 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 200 | 07P1TB125D36DRARA5015 |

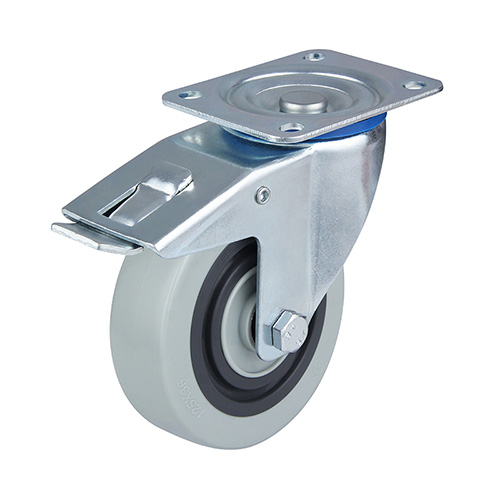

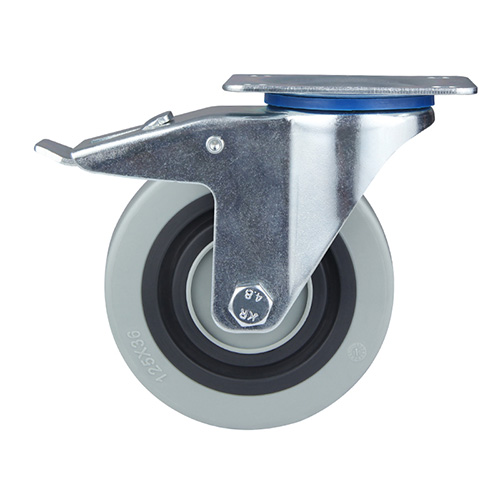

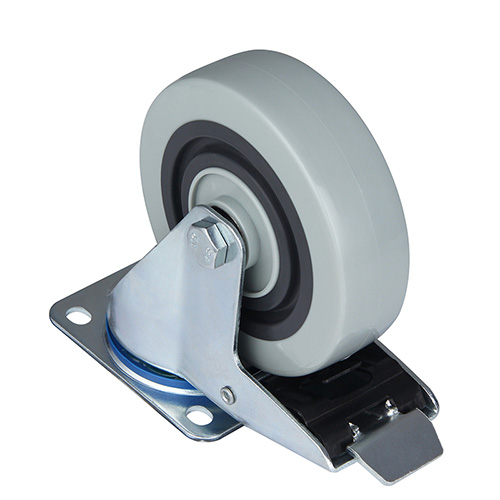

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head grey polyamide wheel centre, grey polyamide and dark grey shore a 80" elastic rubber wheel centre, roller bearing, grey samll plastic thread guards
