Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 125 | 160 | 07P1S100D36DRERX4012 |
100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 128 | 160 | 07P1S/S100D36DRERX4012 |
125 | 36 | 105x80 | 80x60 | 11X9 | 36 | 155 | 200 | 07P1S125D36DRERX5015 |

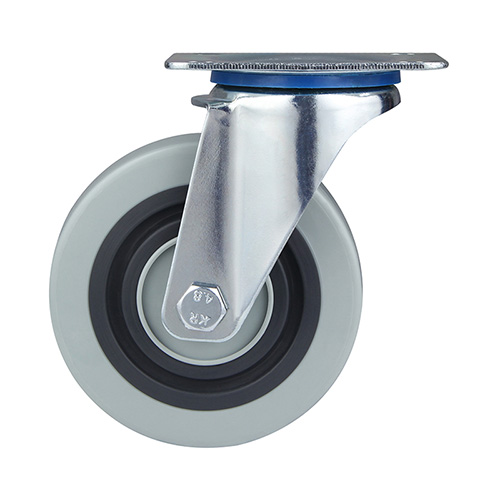

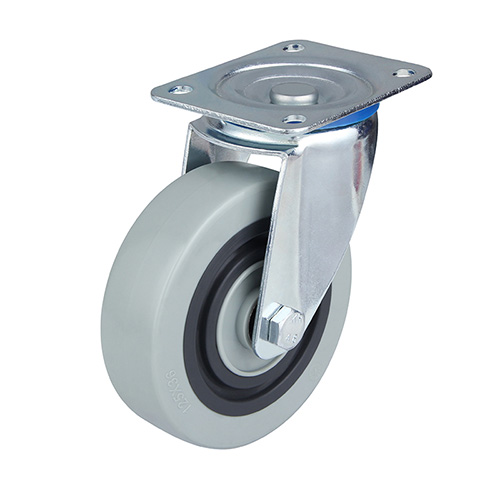

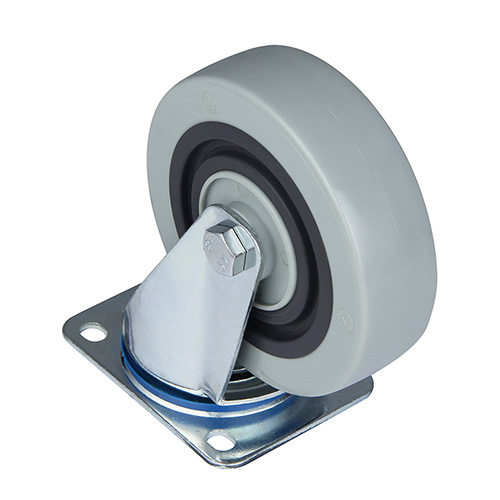

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head grey polyamide wheel centre, grey polyamide and dark grey shore a 80" elastic rubber wheel centre, roller bearing, grey samll plastic thread guards
