![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 156 | 190 | 300 | 07P1CB160D50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 156 | 235 | 350 | 07P1CB200D50JEADX6020 |

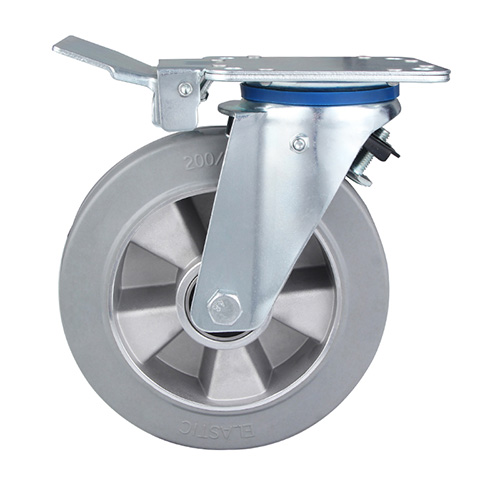

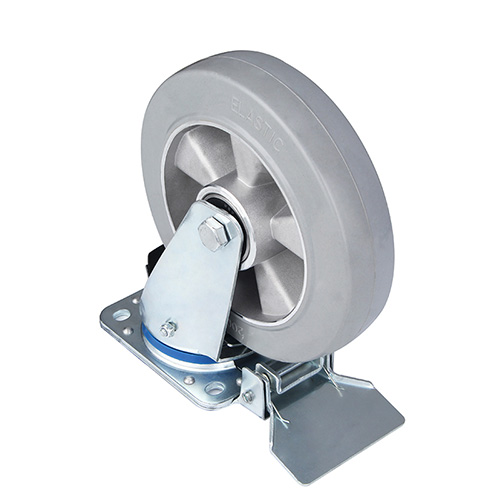

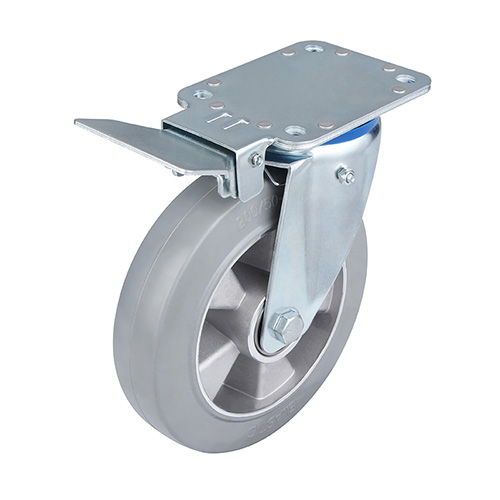

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, Silvery Casting-Aluminium wheel centre, Shore A 68+5 Grey Elastic Rubber Tread, Two Ball bearings
