Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
80 | 38 | 105x80 | 80x60 | 11x9 | 36 | 100 | 150 | 07P1S80D38JEADX4015 |
100 | 40 | 105x80 | 80x60 | 11x9 | 36 | 125 | 180 | 07P1S100D40JEADX4015 |
100 | 40 | 105x80 | 80x60 | 11x9 | 36 | 125 | 180 | 07P1S/S100D40JEADX4015 |
125 | 40 | 105x80 | 80x60 | 11x9 | 36 | 155 | 250 | 07P1S125D40JEADX5015 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 | 07P1S160D50JEADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 350 | 07P1S200D50JEADX6020 |
230 | 50 | 135x110 | 105x80 | 13.5x11 | 61 | 260 | 350 | 07P1S230D50JEADX6020 |
250 | 60 | 135x110 | 105x80 | 13.5x11 | 70 | 290 | 350 | 07P1S250D50JEADX6020 |

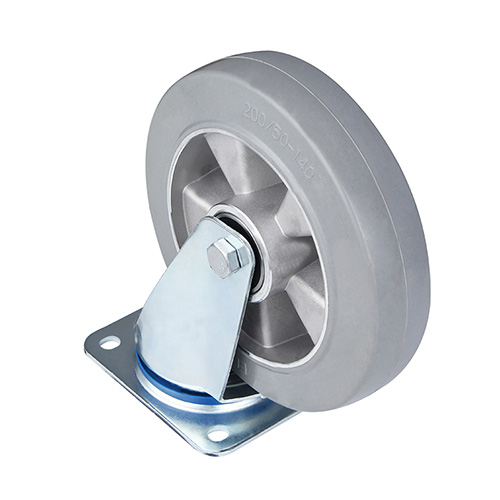

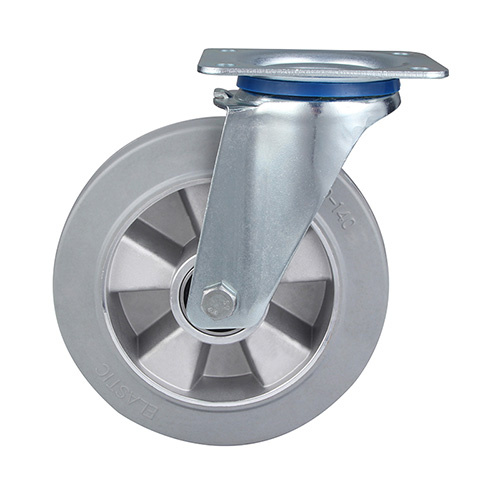

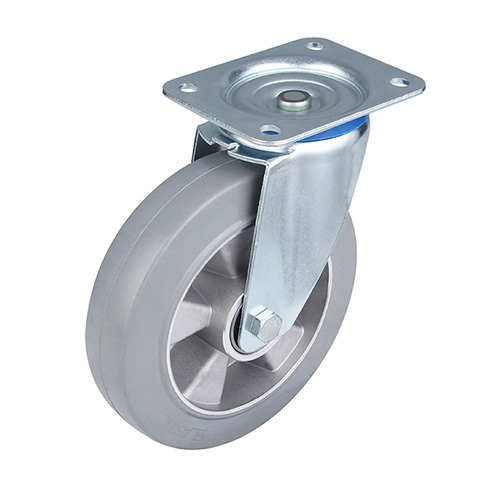

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, Silvery Casting-Aluminium wheel centre, Shore A 68+5 Grey Elastic Rubber Tread, Two Ball bearings
