 Wheel Diameter |
 Width of Tread |
 Offset |
 Hole center |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 80 | 35 | 36 | ф10.5/ф13 | 129 | 99 | 130 | 07H1TB80D35CEPRX4012 |
| 100 | 36 | 40 | ф10.5/ф13 | 132 | 124 | 180 | 07H1TB100D36CEPRX4012 |
| 100 | 36 | 40 | ф10.5/ф13 | 132 | 127 | 180 | 07H1TB/S100D36CEPRX4012 |
| 125 | 36 | 40 | ф10.5/ф13 | 134 | 154 | 230 | 07H1TB125D36CEPRX5015 |
| 160 | 48 | 60 | ф16 | 203 | 185 | 300 | 07H1TB160D48CEPRX6020 |
| 200 | 48 | 60 | ф16 | 203 | 230 | 350 | 07H1TB200D48CEPRX6020 |

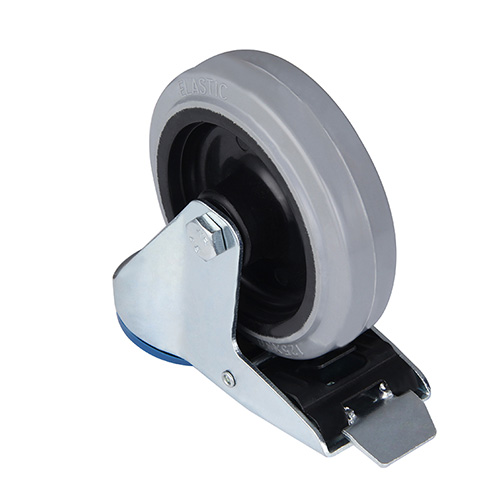

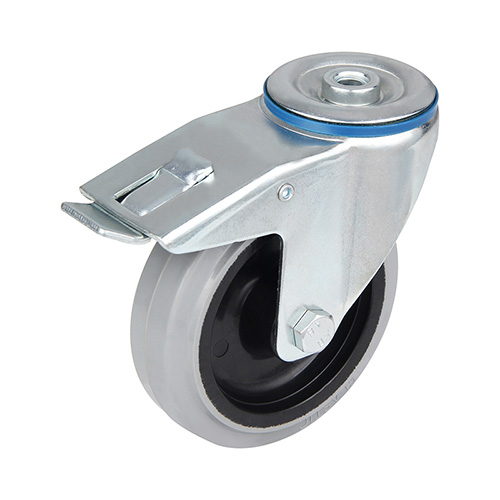

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, roller bearing
