Grey Elastic Rubber Swivel Castor with Total Lock

Grey Elastic Rubber Swivel Castor with Total Lock

Industrial Castors , Grey

Housing

total_brake_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

130, 180, 180, 230, 300, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

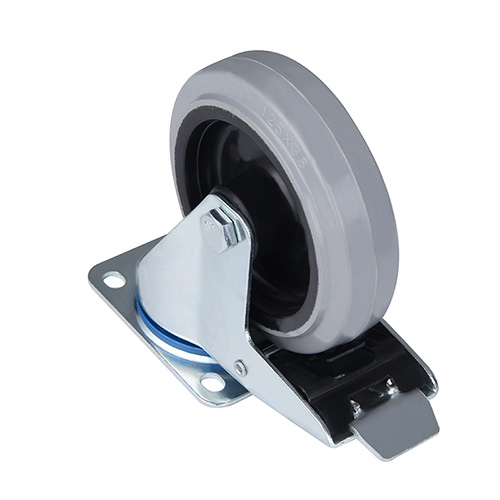

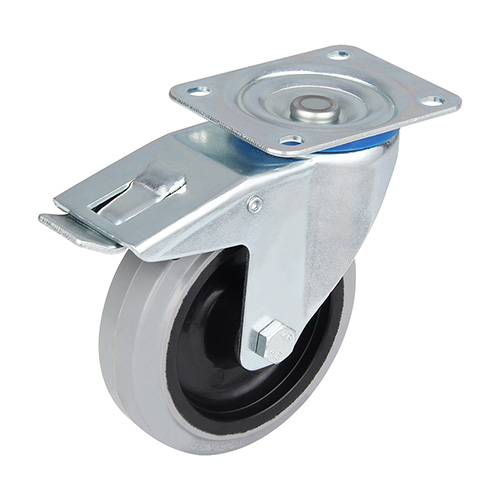

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, roller bearing

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	35	105x80	80x60	11X9	36	129	100	130	07P1TB80D35CEPRX4012
100	36	105x80	80x60	11X9	40	129	125	180	07P1TB100D36CEPRX4012
100	36	105x80	80x60	11X9	40	132	128	180	07P1TB/S100D36CEPRX4012
125	36	105x80	80x60	11X9	40	134	155	230	07P1TB125D36CEPRX5015
160	48	135x110	105x80	13.5x11	60	203	190	300	07P1TB160D48CEPRX6020
200	48	135x110	105x80	13.5x11	60	156	235	350	07P1TB200D48CEPRX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, roller bearing
