Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
80 | 35 | 105x80 | 80x60 | 11X9 | 36 | 100 | 130 | 07P1S80D35CEPRX4012 |
100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 125 | 180 | 07P1S100D36CEPRX4012 |
100 | 36 | 105x80 | 80x60 | 11X9 | 36 | 128 | 180 | 07P1S/S100D36CEPRX4012 |
125 | 36 | 105x80 | 80x60 | 11X9 | 36 | 155 | 180 | 07P1S125D36CEPRX5015 |
160 | 48 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 | 07P1S160D48CEPRX6020 |
200 | 48 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 350 | 07P1S200D48CEPRX6020 |

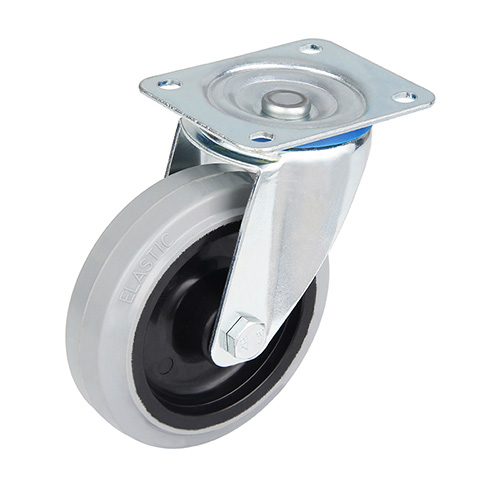

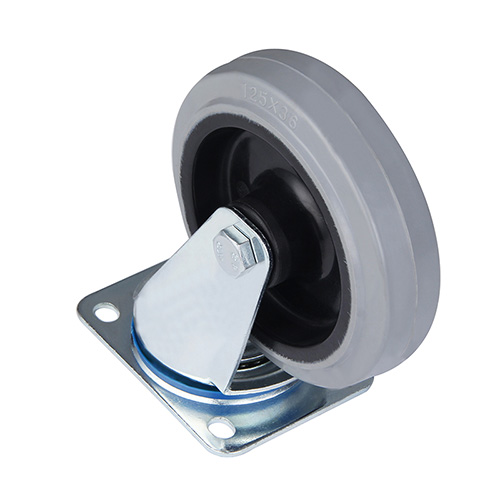

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, roller bearing
