Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
100 | 34 | 105x80 | 80x60 | 11X9 | 125 | 160 | 07P1F100D34DETRX4012 |
100 | 34 | 105x80 | 80x60 | 11X9 | 128 | 160 | 07P1F/S100D34DETRX4012 |
125 | 40 | 105x80 | 80x60 | 11X9 | 155 | 250 | 07P1F125D40DETRX5015 |
160 | 46 | 135x114 | 105x80 | 13.5x11 | 190 | 300 | 07P1F160D46DETRX6020 |
200 | 46 | 135x114 | 105x80 | 13.5x11 | 235 | 350 | 07P1F200D46DETRX6020 |

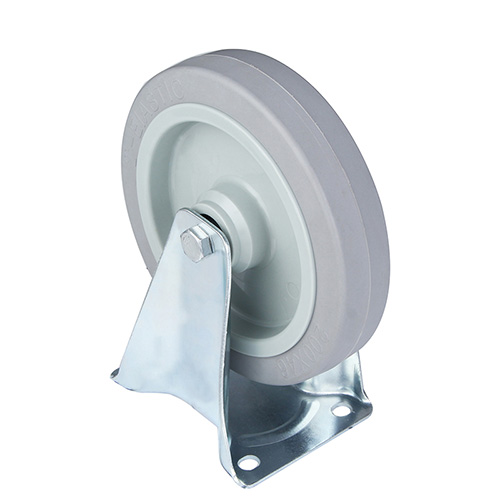

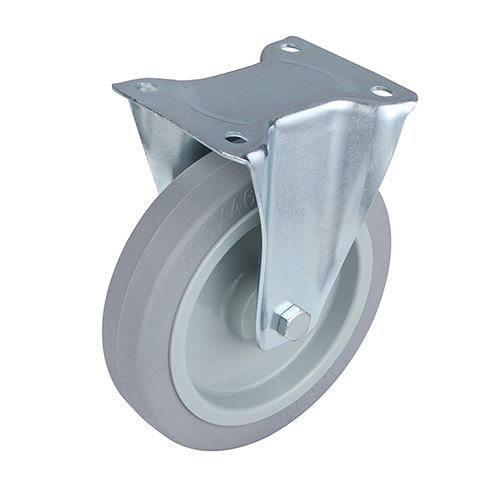

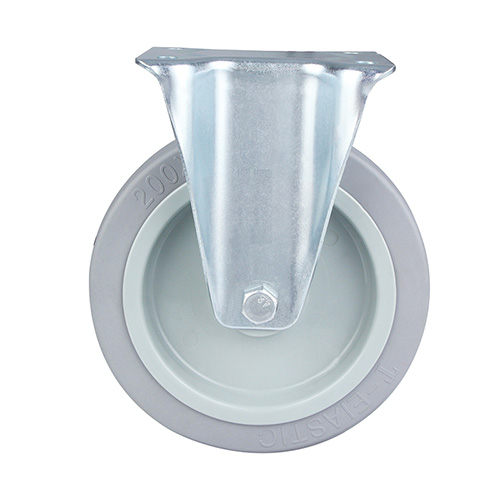

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 68+5 grey elastic rubber tread, roller bearing
