![]() Wheel Diameter |
![]() Width of Tread |
![]() Offset |
![]() Plate hole |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|
80 | 34 | 36 | ф10.5/ф13 | 99 | 150 | 07H1S80B34BPABA428 |
100 | 36 | 36 | ф10.5/ф13 | 124 | 180 | 07H1S100B36BPABA428 |
100 | 36 | 36 | ф10.5/ф13 | 127 | 180 | 07H1S/S100B36BPABA428 |
125 | 40 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125B40BPABA5210 |

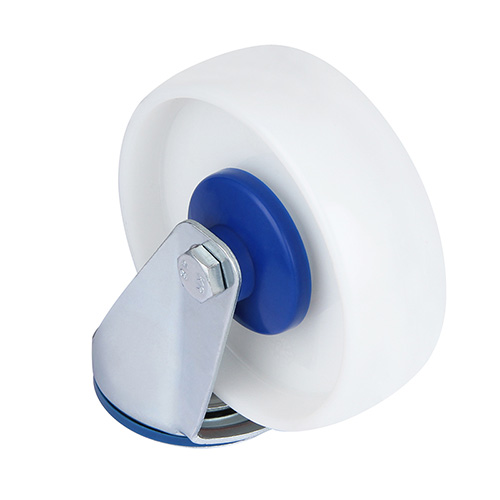

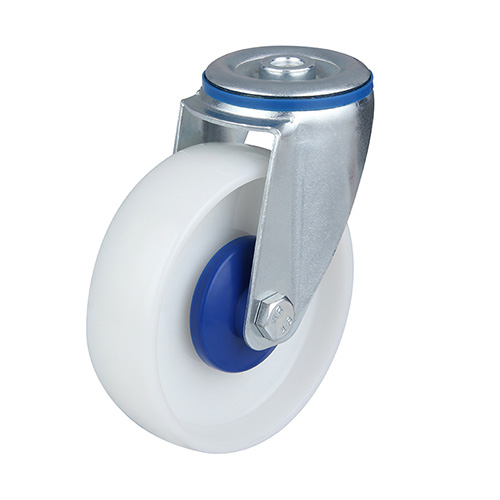

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, White Injection Polyamide,Central ball bearing, Blue samll Plastic thread guards
