![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
80 | 36 | 105x80 | 80x60 | 11X9 | 36 | 129 | 100 | 130 | 07P1TB80D35CEPBA4208 |
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 125 | 160 | 07P1TB100D36CEPBA4208 |
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 160 | 07P1TB/S100D36CEPBA4208 |
125 | 36 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 230 | 07P1TB125D36CEPBA5210 |
125 | 38 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 250 | 07P1TB125D38CEPBA5210 |

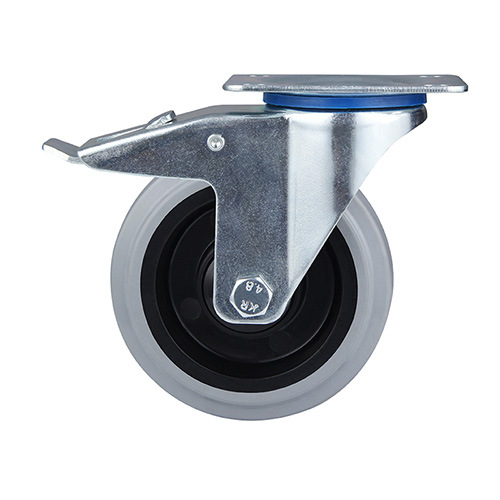

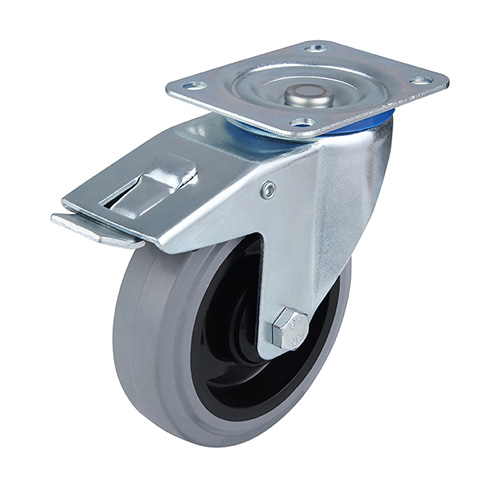

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, central ball bearing,black samll plastic thread guards
