Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
100 | 34 | 102x87 | 80x60 | 11X9 | 125 | 160 | 07P1F100D34DETBA4208 |
100 | 34 | 102x87 | 80x60 | 11X9 | 128 | 160 | 07P1F/S100D34DETBA4208 |
125 | 40 | 102x87 | 80x60 | 11X9 | 155 | 250 | 07P1F125D40DETBA5210 |

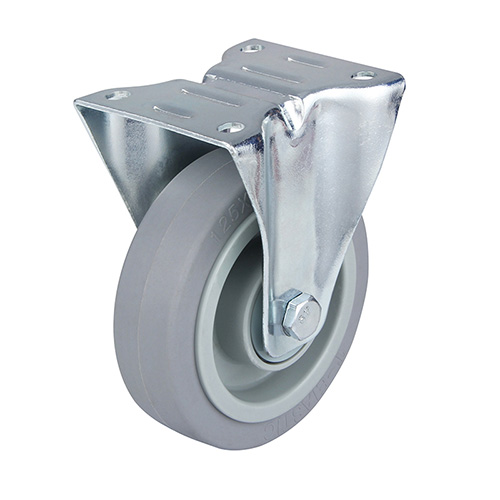

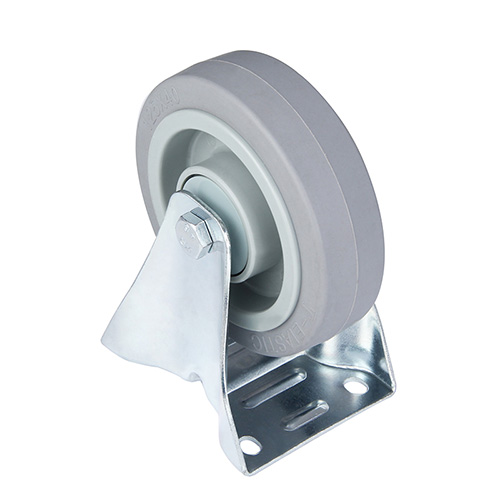

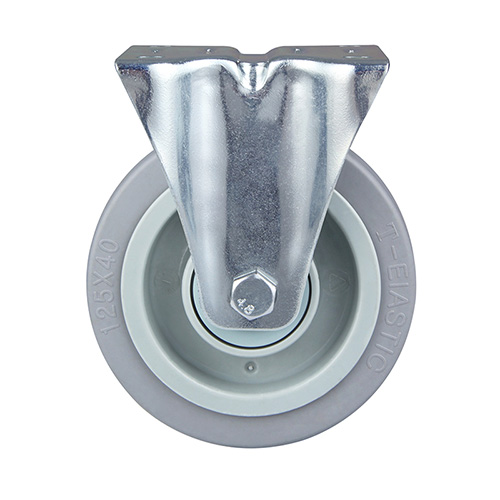

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 68+5 grey elastic rubber thread, central ball bearing, grey samll thread guards
