Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
100 | 36 | 36 | ф10.5/ф13 | 124 | 160 | 07H1S100D34DETBA4208 |
100 | 36 | 36 | ф10.5/ф13 | 127 | 160 | 07H1S/S100D34DETBA4208 |
125 | 40 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125D40DETBA5210 |

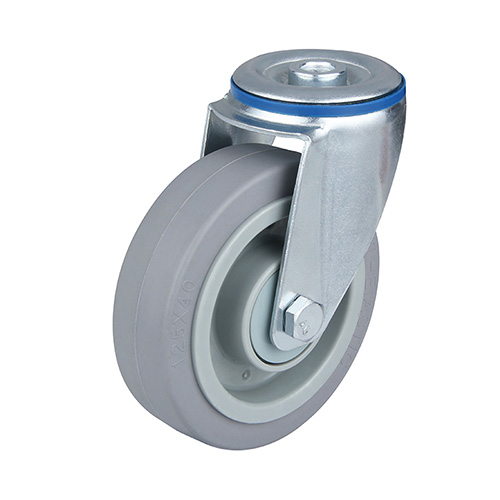

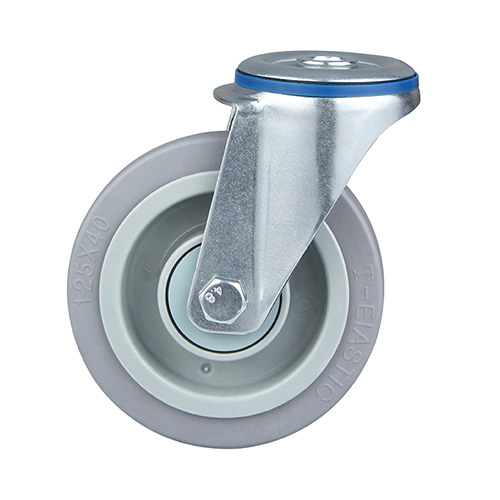

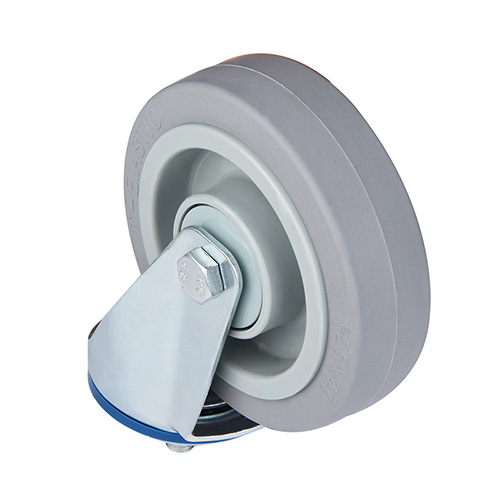

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 68+5 grey elastic rubber thread, central ball bearing, grey samll thread guards
