![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|
100 | 34 | 105x80 | 80x60 | 11X9 | 36 | 125 | 160 | 07P1S100D34DETBA4208 |
100 | 34 | 105x80 | 80x60 | 11X9 | 36 | 128 | 160 | 07P1S/S100D34DETBA4208 |
125 | 40 | 105x80 | 80x60 | 11X9 | 36 | 155 | 250 | 07P1S125D40DETBA5210 |

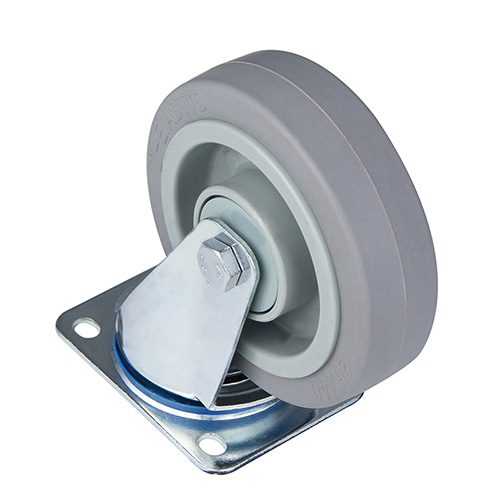

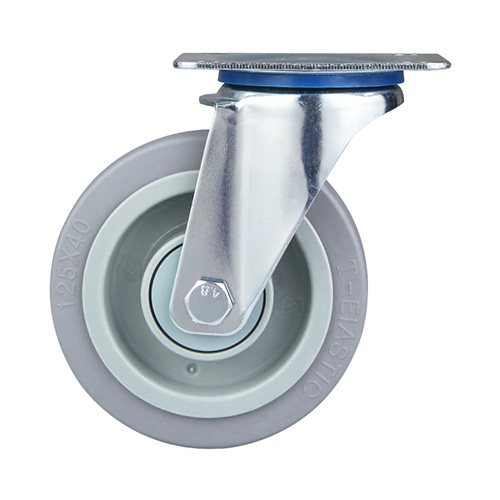

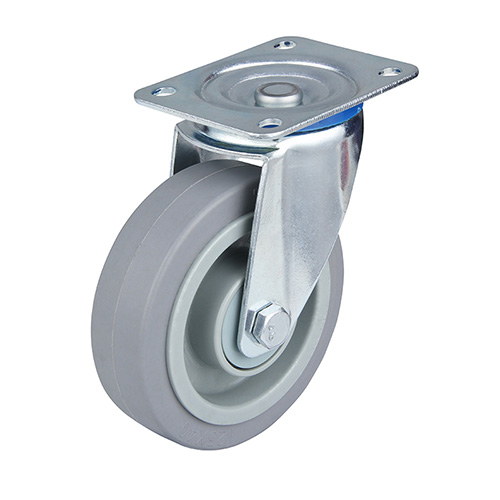

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 68+5 grey elastic rubber thread, central ball bearing, grey samll thread guards
