Green Polyurethane Swivel Castor with Bolt Hole and Total Lock With Green Plastic Samll Thread Guards

Industrial Castors , Green

Housing

bolt_hole_castors_with_total_brake

Wheel diameter

80, 100, 125mm

Load capacity

150, 200, 250kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green plastic samll thread guards

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Hole center	Offset	Swivel raidus	Overall height	Load capacity	number
80	38	ф10.5/ф13	40	120	108	200	09H1TB80K38JUADX4015
100	38	ф10.5/ф13	40	122	132	250	09H1TB100K38JUADX4015
125	38	ф10.5/ф13	40	122	155	300	09H1TB125K38JUADX5015

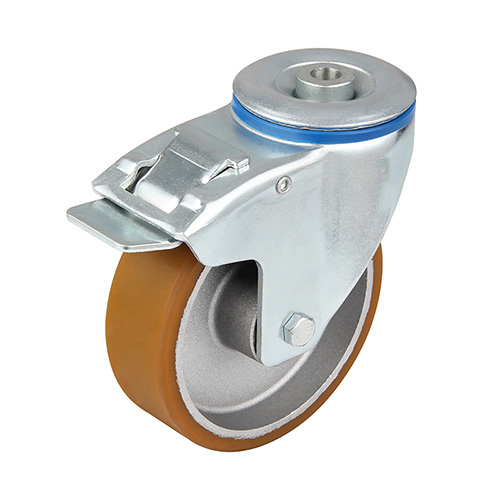

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread, two ball bearings
