![]() Wheel Diameter |
![]() Width of Tread |
![]() Hole center |
![]() Offset |
![]() Swivel raidus |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 34 | ф10.5/ф13 | 40 | 120 | 108 | 150 | 09H1TB80H34DUPDA208 |
100 | 34 | ф10.5/ф13 | 40 | 122 | 132 | 200 | 09H1TB100H34DUPDA4208 |
125 | 36 | ф10.5/ф13 | 40 | 122 | 155 | 250 | 09H1TB125H36DUPDA5210 |

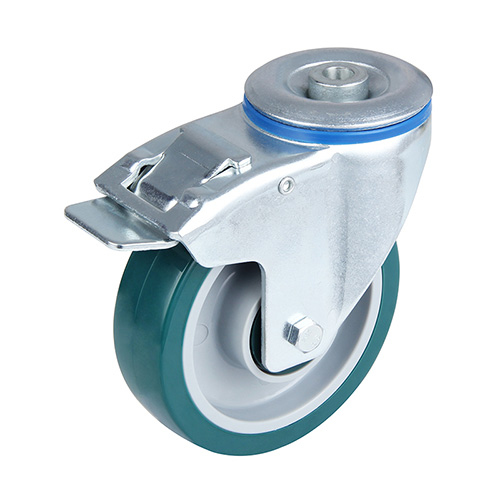

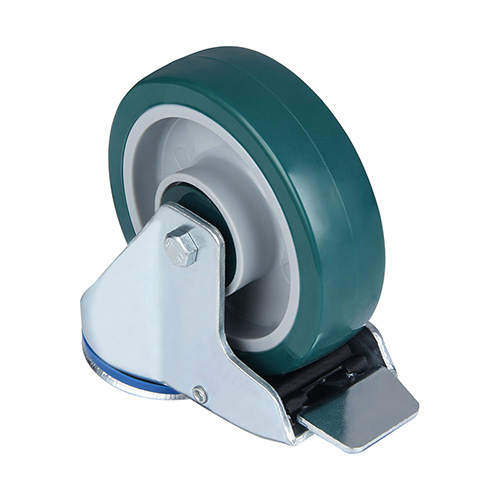

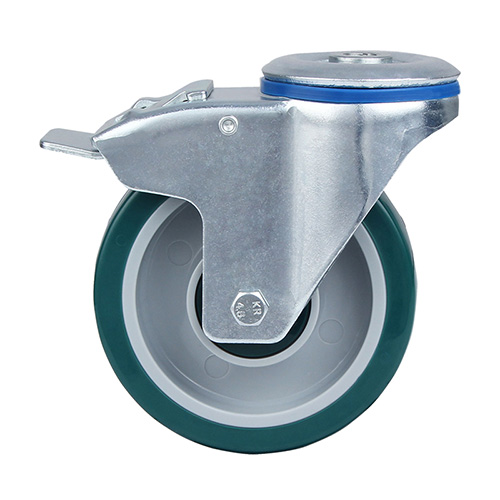

Pressed steel swivel fork assembly, zinc-plated swivel head with double ball race, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, two ball bearings, green plastic samll thread guards
