 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 80 | 34 | 36 | ф10.5/ф13 | 99 | 150 | 07H1S80H34DUPBA428 |
| 100 | 34 | 36 | ф10.5/ф13 | 124 | 180 | 07H1S100H34DUPBA428 |
| 100 | 34 | 36 | ф10.5/ф13 | 127 | 180 | 07H1S/S100H34DUPBA428 |
| 125 | 36 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125H36DUPBA5210 |

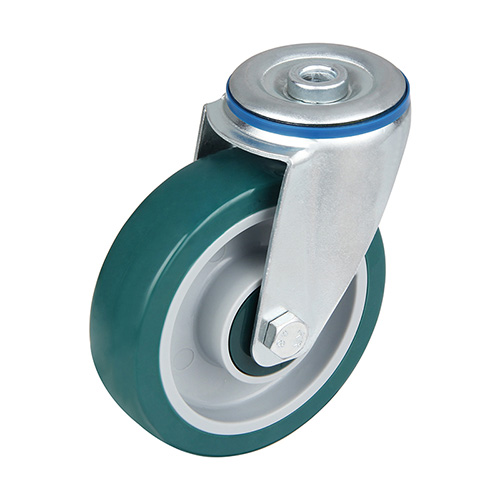

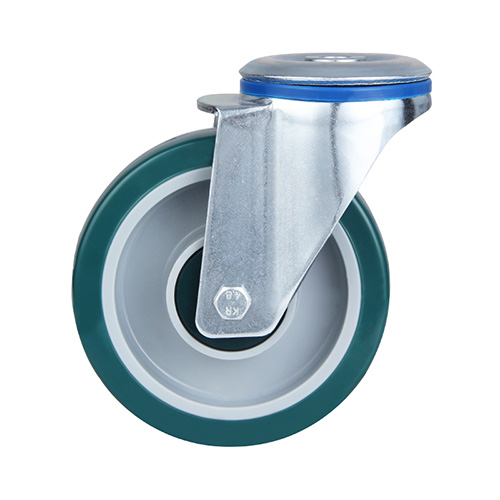

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, central ball bearing, green plastic samll thread guards
