 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 34 | 105x80 | 80x60 | 11X9 | 36 | 129 | 100 | 150 | 07P1TB80H34DUPBA428 |
| 100 | 34 | 105x80 | 80x60 | 11X9 | 40 | 132 | 125 | 180 | 07P1TB100H34DUPBA428 |
| 100 | 34 | 105x80 | 80x60 | 11X9 | 40 | 132 | 128 | 180 | 07P1TB/S100H34DUPBA428 |
| 125 | 36 | 105x80 | 80x60 | 11X9 | 40 | 134 | 155 | 250 | 07P1TB125H36DUPBA5210 |

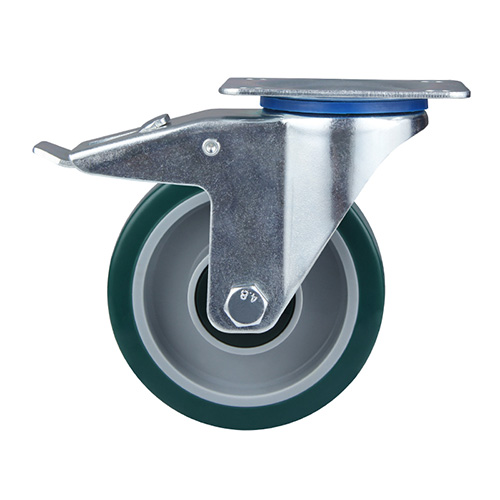

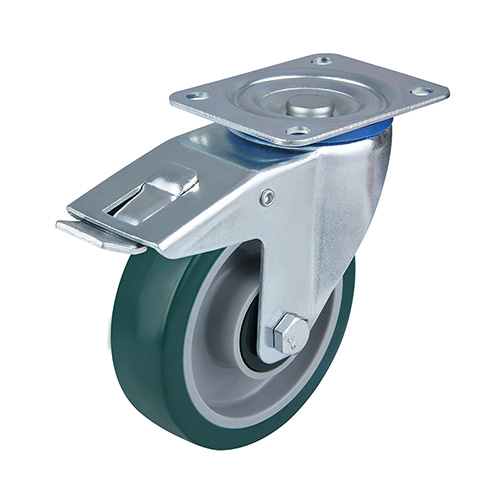

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, central ball bearing, green plastic samll thread guards
