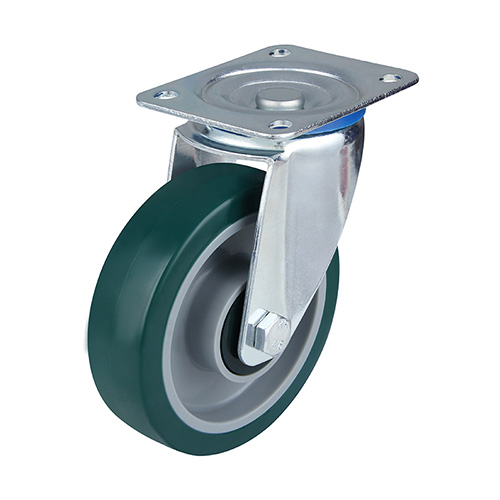

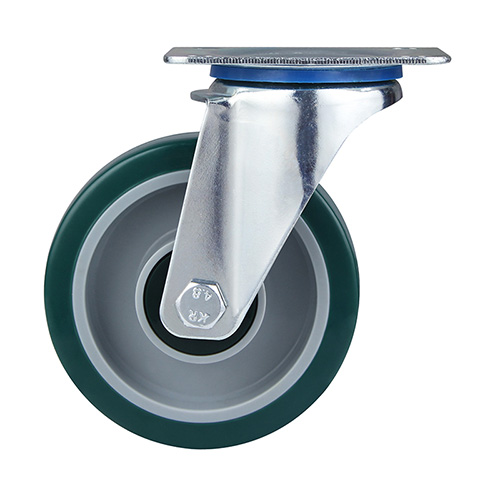

Green Injection Polyurethane Castors

Industrial Castors , Green

Housing

swivel_castors

Wheel diameter

80, 100, 100, 125mm

Load capacity

130, 160, 160, 250kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 grey elastic rubber tread, central ball bearing,black samll plastic thread guards

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
80	34	105x80	80x60	11X9	36	100	150	07P1S80H34DUPBA428
100	34	105x80	80x60	11X9	36	125	180	07P1S100H34DUPBA428
100	34	105x80	80x60	11X9	36	128	180	07P1S/S100H34DUPBA428
125	36	105x80	80x60	11X9	36	155	250	07P1S125H36DUPBA5210

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, grey polyamide wheel centre, shore a 92 green injection polyurethane tread, central ball bearing, green plastic samll thread guards
