Housing
total_brake_castors
Wheel diameter
100, 125mm
Load capacity
270, 310kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 85

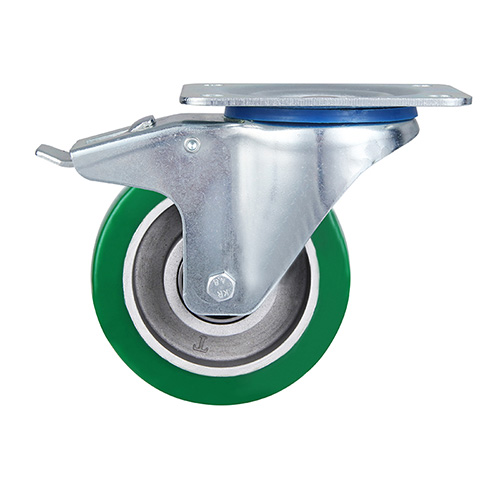

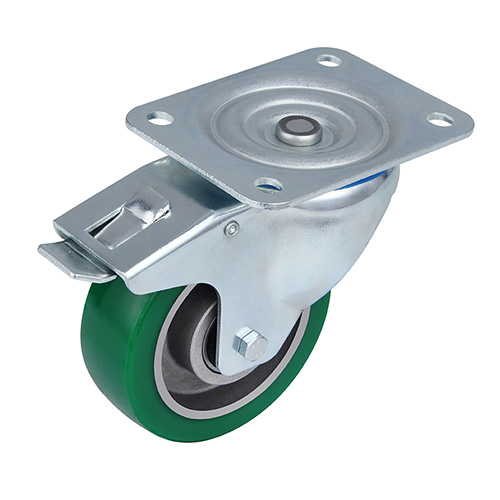

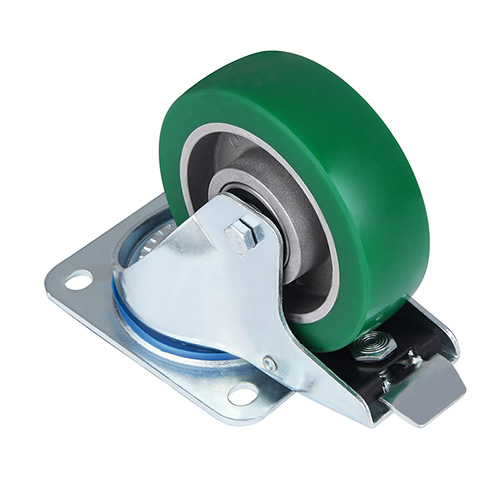

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head,silvery casting-aluminium wheel centre,shore a 85 green elastic polyurethane thread,two ball bearings
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 40 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 128 | 270 | 06P1TB100H40JUHADX4015 |
| 125 | 40 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 155 | 310 | 06P1TB125H40JUHADX5015 |
| 125 | 40 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 155 | 310 | 06P1TB/S125H40JUHADX5015 |
Tile Floor
Resin Cement Floor
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
