Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 500 | 09P1DB160H50JUHDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 500 | 09P1DB/S160H50JUHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 500 | 09P1DB200H50JUHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 600 | 09P1DB/S200H50JUHDX6020 |

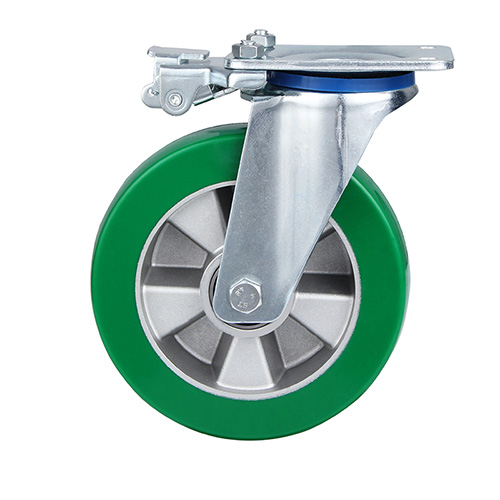

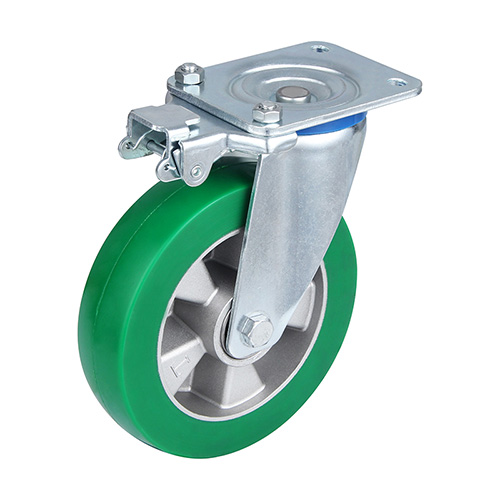

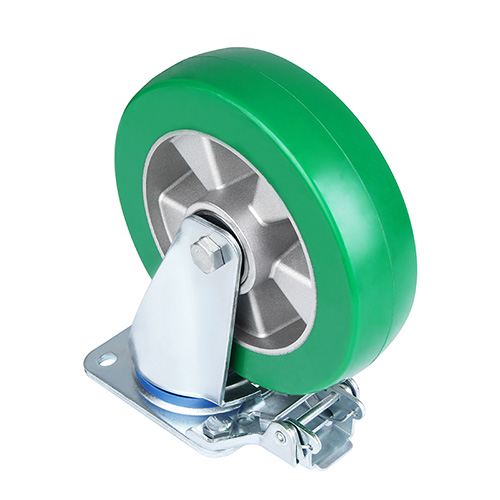

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane tread, two ball bearings
