 Wheel Diameter |
 Width of Tread |
 Hole center |
 Offset |
 Swivel raidus |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|
| 80 | 38 | ф10.5/ф13 | 40 | 120 | 108 | 220 | 09H1TB80H38JUHDX4015 |
| 100 | 40 | ф10.5/ф13 | 40 | 122 | 132 | 270 | 09H1TB100H40JUHDX4015 |
| 125 | 40 | ф10.5/ф13 | 40 | 122 | 155 | 310 | 09H1TB125H40JUHDX5015 |

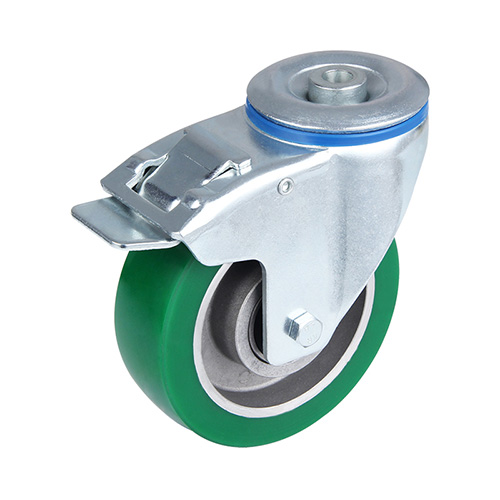

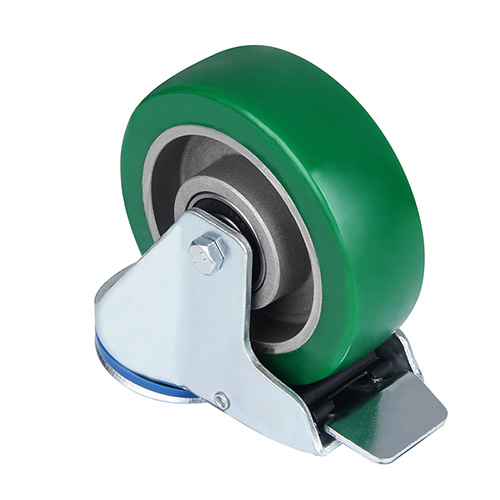

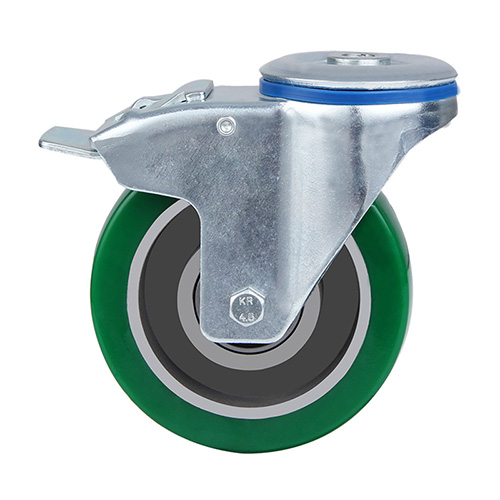

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane tread, two ball bearings
