Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 38 |
ф10.5/ф13 |
40 | 108 | 220 | 09H1S80H38JUHDX4015 |
100 | 40 |
ф10.5/ф13 |
40 | 132 | 270 | 09H1S100H40JUHDX4015 |
125 | 40 |
ф10.5/ф13 |
40 | 155 | 310 | 09H1S125H40JUHDX5015 |

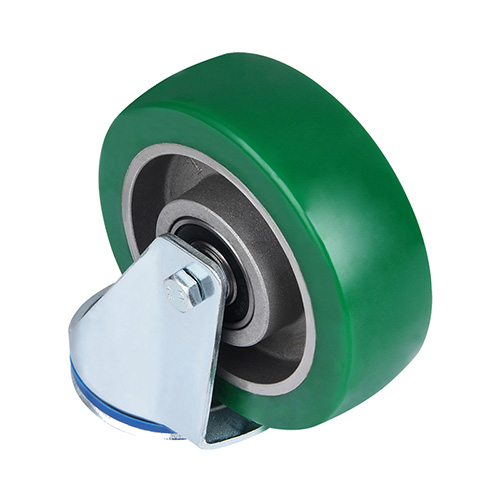

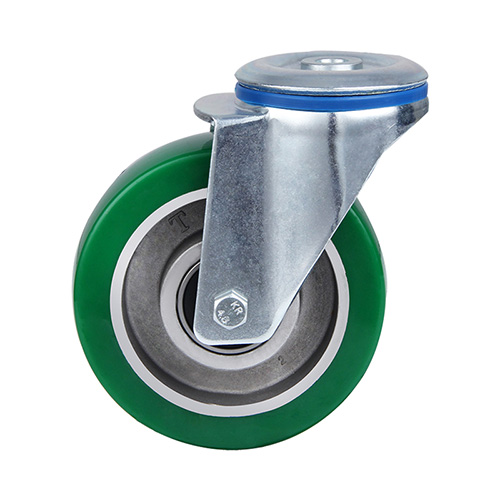

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane tread, two ball bearings
