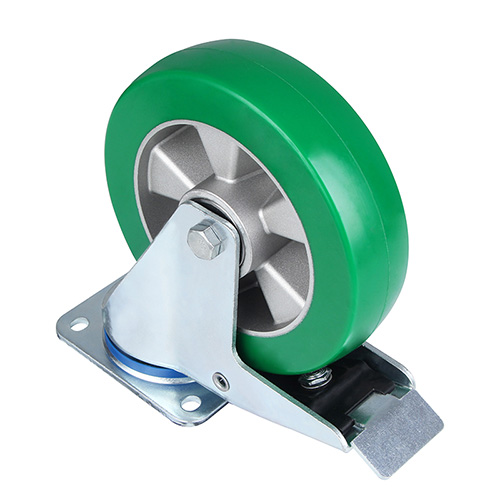

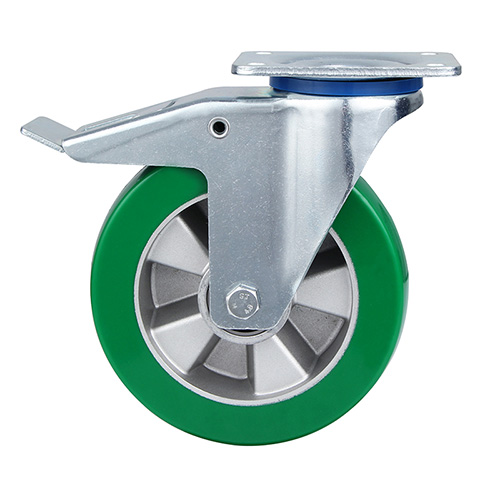

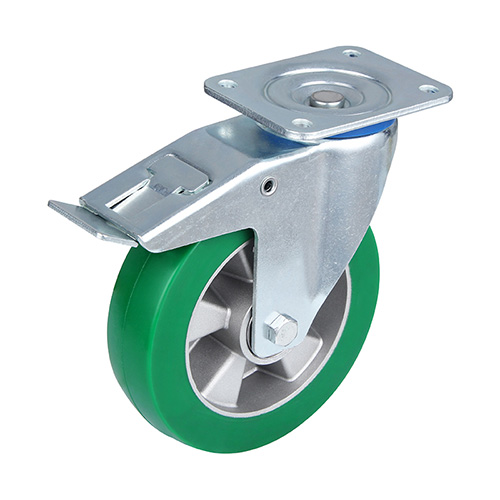

Green Elastic Polyurethane Swivel Castor with Total Lock with Two Ball bearings

Green Elastic Polyurethane Swivel Castor with Total Lock with Two Ball bearings

Industrial Castors , Green

Housing

total_brake_castors

Wheel diameter

80, 100, 125, 160, 160，200，200mm

Load capacity

180, 200, 250, 400, 400, 450, 450kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 85

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	38	105x80	80x60	11X9	40	120	108	220	09P1TB80H38JUHDX4015
100	40	105x80	80x60	11X9	40	122	132	270	09P1TB100H40JUHDX4015
125	40	105x80	80x60	11X9	40	122	155	310	09P1TB125H40JUHDX5015
160	50	135x110	105x80	13.5x11	60	199	190	500	09P1TB160H50JUHDX6020
160	50	135x110	105x80	13.5x11	60	199	200	500	09P1TB/S160H50JUHDX6020
200	50	135x110	105x80	13.5x11	60	199	235	500	09P1TB200H50JUHDX6020
200	50	135x110	105x80	13.5x11	60	199	245	600	09P1TB/S200H50JUHDX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane tread, two ball bearings
