Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 38 | 105x80 | 80x60 | 11X9 | 108 | 220 | 09P1F80H38JUHDX4015 |
100 | 40 | 105x80 | 80x60 | 11X9 | 132 | 270 | 09P1F100H40JUHDX4015 |
125 | 40 | 105x80 | 80x60 | 11X9 | 155 | 310 | 09P1F125H40JUHDX5015 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 190 | 500 | 09P1F160H50JUHDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 200 | 500 | 09P1F/S160H50JUHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 235 | 500 | 09P1F200H50JUHDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 245 | 600 | 09P1F/S200H50JUHDX6020 |

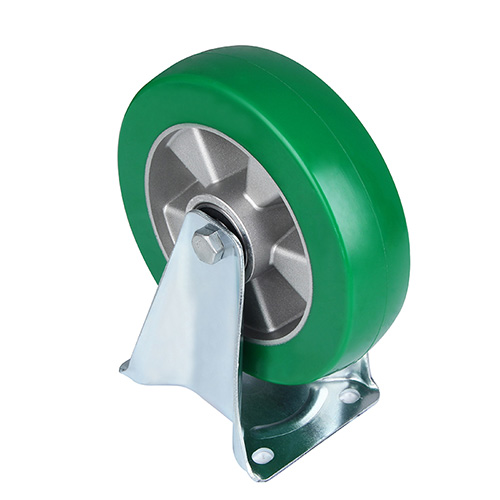

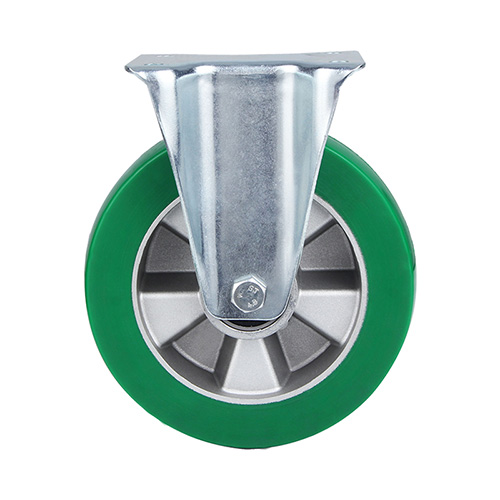

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 85 green elastic polyurethane tread, two ball bearings
