Housing
total_brake_castors
Wheel diameter
100, 125mm
Load capacity
300, 350kg
Temperature
- 20 / + 60 °C
Standard
EN 12532
WarrantyHardness of tread
Shore A 92

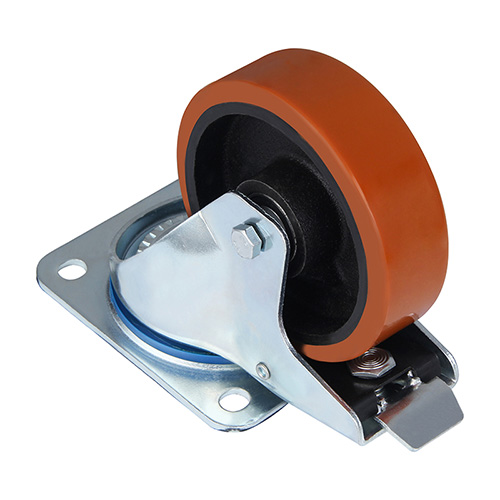

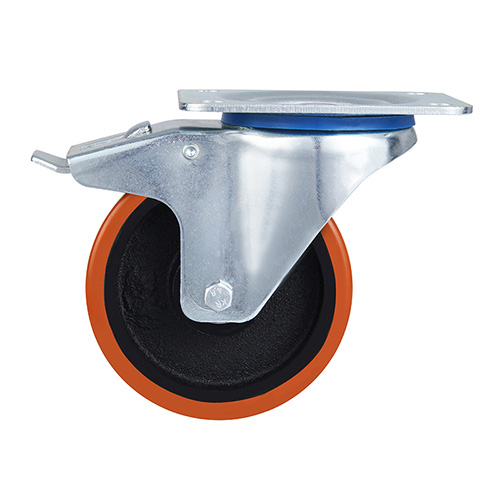

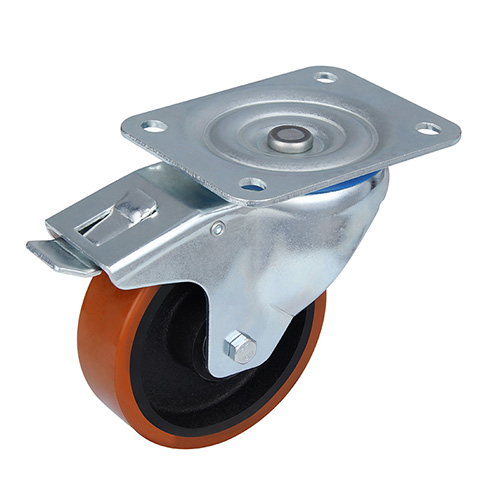

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread,two ball bearings
 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Swivel radius |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 38 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 128 | 300 | 06P1TB100K38CUIDX4515 |
| 125 | 38 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 155 | 350 | 06P1TB125K38CUIDX4515 |
| 125 | 38 | 135x110 | 105x80 | 13.5X11 | 45 | 137 | 155 | 350 | 06P1TB/S125K38CUIDX4515 |
Tile Floor
Resin Cement Floor
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
