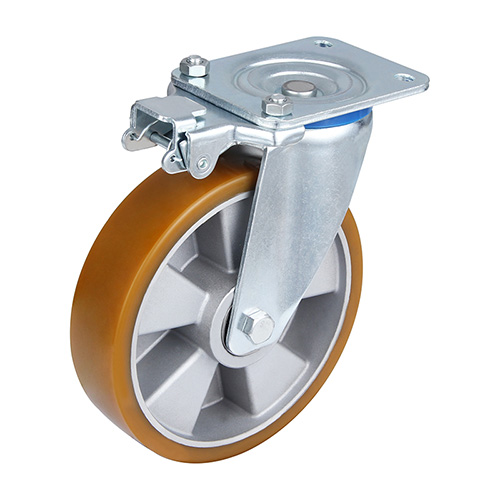

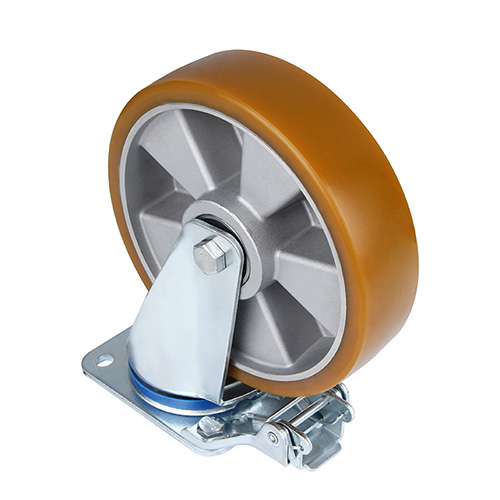

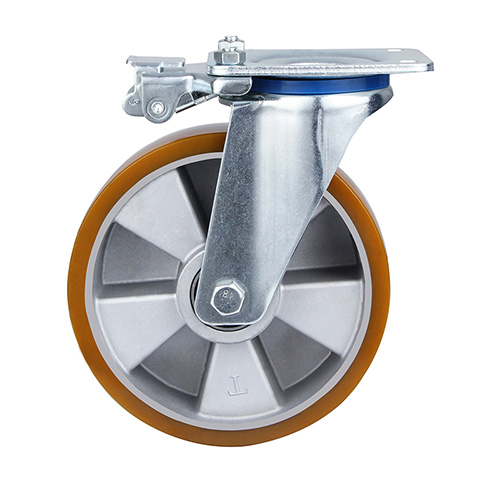

Brown Polyurethane Castors with Silvery Casting-Aluminium Wheel Centre

Brown Polyurethane Castors with Silvery Casting-Aluminium Wheel Centre

Industrial Castors , Brown

Housing

directional_lock_castors

Wheel diameter

160, 200mm

Load capacity

500, 600kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Overall height	Load capacity	number
160	50	135x110	105x80	13.5x11	52	190	500	09P1DB160K50JUADX6020
160	50	135x110	105x80	13.5x11	52	200	600	09P1DB/S160K50JUADX6020
200	50	135x110	105x80	13.5x11	54	235	600	09P1DB200K50JUADX6020
200	50	135x110	105x80	13.5x11	54	245	600	09P1DB/S200K50JUADX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread, two ball bearings
