Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 500 | 09P1FB160K50JUADX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 600 | 09P1FB/S160K50JUADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 235 | 600 | 09P1FB200K50JUADX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 245 | 600 | 09P1FB/S200K50JUADX6020 |

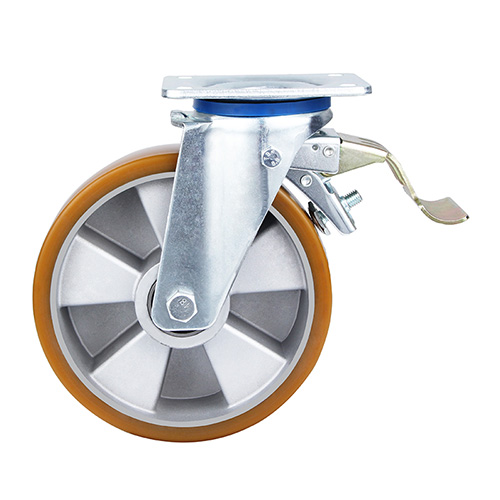

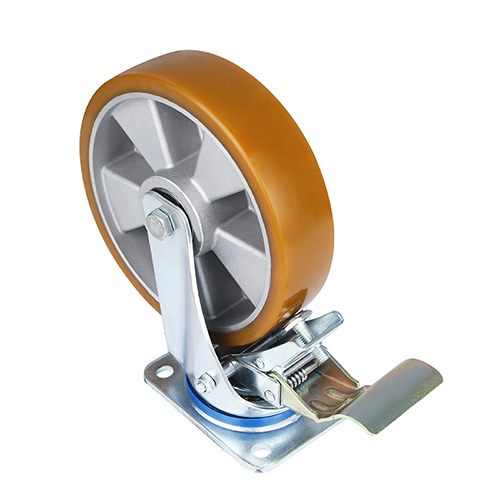

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, silvery casting-aluminium wheel centre, shore a 92 brown polyurethane tread, two ball bearings
