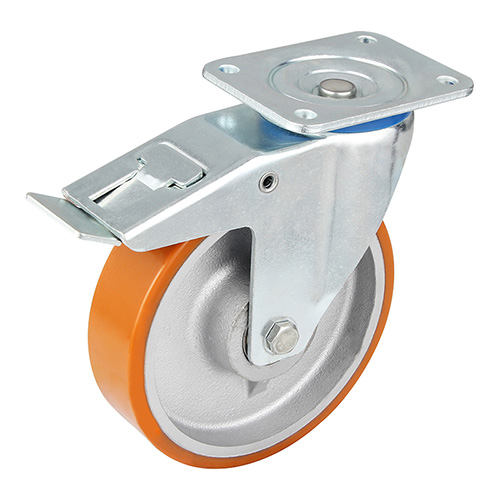

Brown Polyurethane Swivel Castor with Total Lock with Sliver Casting-Iron Wheel Centre

Industrial Castors , Brown

Housing

total_brake_castors

Wheel diameter

100, 125, 160, 160, 200, 200mm

Load capacity

300, 350, 500, 600, 500, 600kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 92

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, sliver casting-iron wheel centre, shore a 92 brown polyurethane tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
100	38	105x80	80x60	11X9	40	122	132	300	09P1TB100K38JUIDX4015
125	38	105x80	80x60	11X9	40	122	155	350	09P1TB125K38JUIDX5015
160	50	135x110	105x80	13.5x11	60	199	190	500	09P1TB160K50JUIDX6020
160	50	135x110	105x80	13.5x11	60	199	200	600	09P1TB/S160K50JUIDX6020
200	50	135x110	105x80	13.5x11	60	199	235	600	09P1TB200K50JUIDX6020
200	50	135x110	105x80	13.5x11	60	199	245	600	09P1TB/S200K50JUIDX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, sliver casting-iron wheel centre, shore a 92 brown polyurethane tread, two ball bearings
