 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 | 09P1DB160A46CETDA6212 |
| 160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 300 | 09P1DB/S160A46CETDA6212 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 400 | 09P1DB200A46CETDA6212 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 400 | 09P1DB/S200A46CETDA6212 |

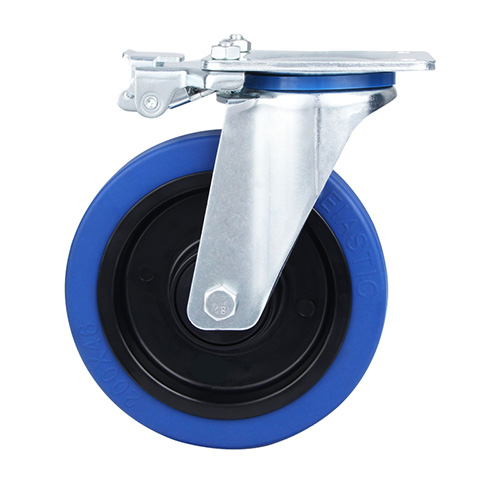

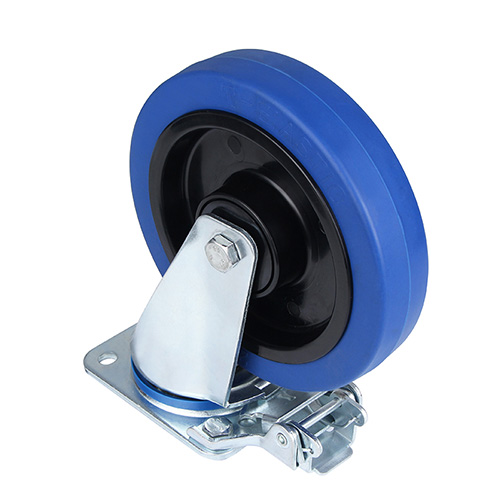

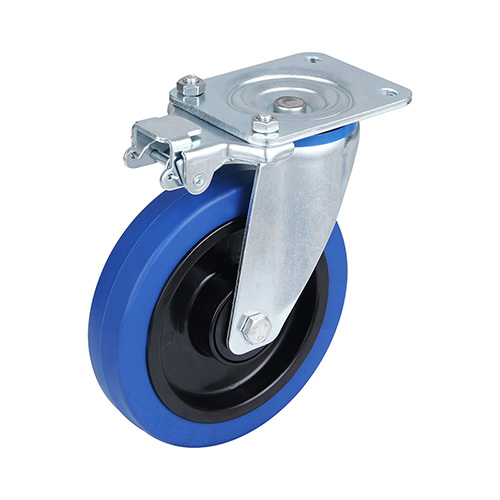

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings, black samll plastic thread guards
