![]() Wheel Diameter |
![]() Width of Tread |
![]() Size of Plate |
![]() Plate hole centers |
![]() Plate hole |
![]() Offset |
![]() Swivel radius |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 48 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 300 | 09P1FB160A46CETDA6212 |
160 | 48 | 135x110 | 105x80 | 13.5x11 | 52 | 154 | 190 | 300 | 09P1FB/S160A46CETDA6212 |
200 | 48 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 235 | 400 | 09P1FB200A46CETDA6212 |
200 | 48 | 135x110 | 105x80 | 13.5x11 | 54 | 154 | 245 | 400 | 09P1FB/S200A46CETDA6212 |

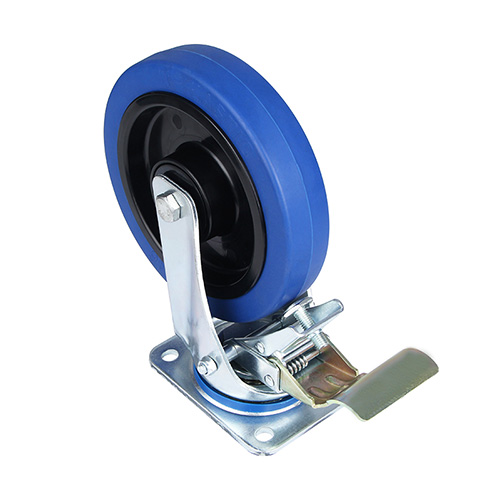

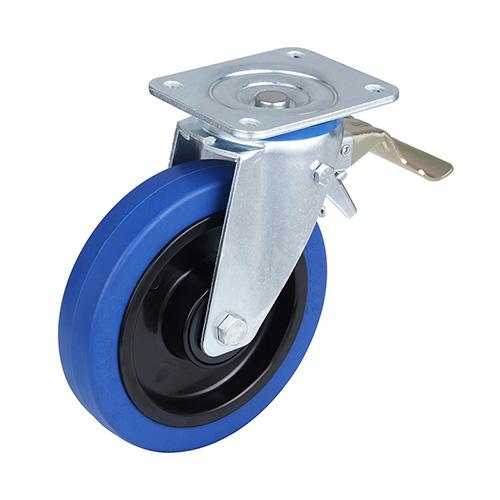

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings, black samll plastic thread guards
