Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
100 | 34 | 105x80 | 80x60 | 11X9 | 40 | 132 | 160 | 09P1S100A34CETDA428 |
125 | 40 | 105x80 | 80x60 | 11X9 | 40 | 155 | 250 | 09P1S125A34CETDA5210 |
160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 | 09P1S160A46CETDA6212 |
160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 300 | 09P1S/S160A46CETDA6212 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 400 | 09P1S200A46CETDA6212 |
200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 400 | 09P1S/S200A46CETDA6212 |

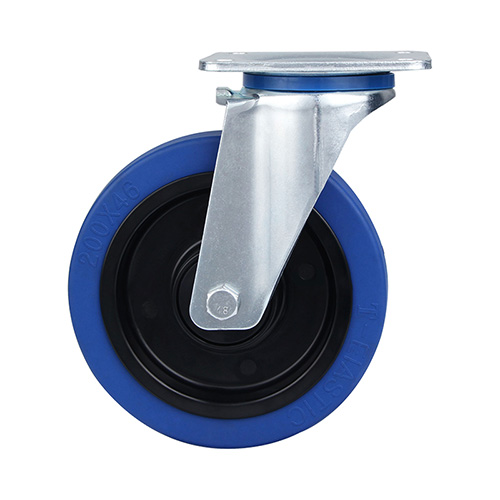

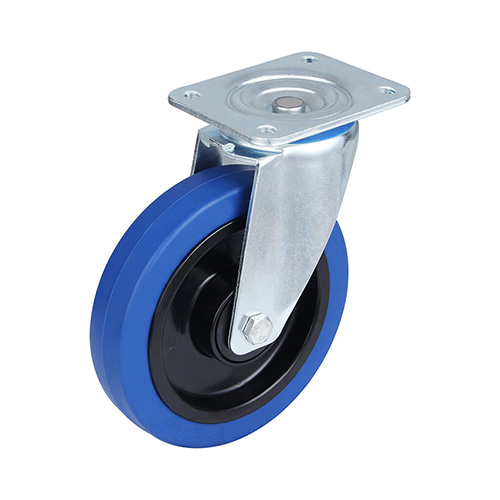

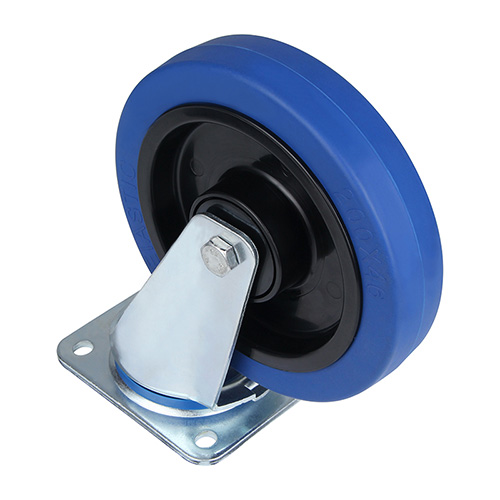

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, two ball bearings, black samll plastic thread guards
