Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 350 | 09H1DB160A50CEPDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 350 | 09H1DB/S160A50CEPDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 400 | 09H1DB200A50CEPDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 400 | 09H1DB/S200A50CEPDX6020 |

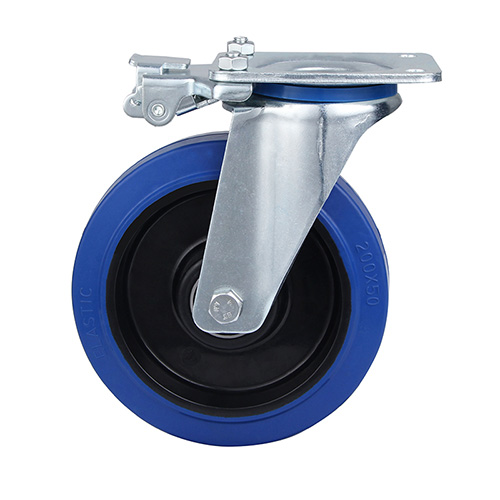

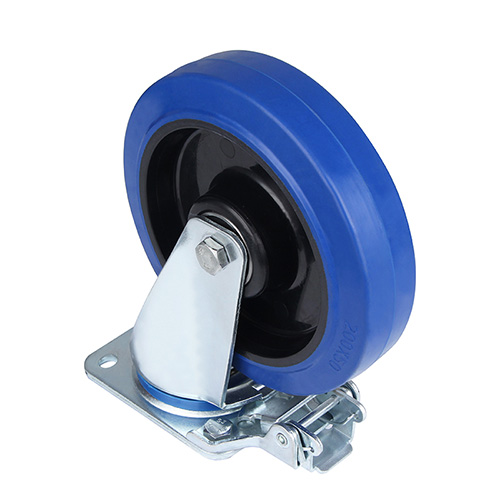

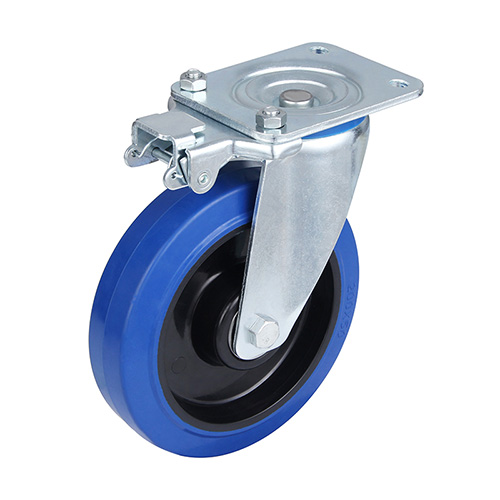

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
