![]() Wheel Diameter |
![]() Width of Tread |
![]() Hole center |
![]() Offset |
![]() Swivel raidus |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 36 | ф10.5/ф13 | 40 | 120 | 108 | 150 | 09H1TB80A36CEPDX4015 |
100 | 36 | ф10.5/ф13 | 40 | 122 | 132 | 180 | 09H1TB100A36CEPDX4015 |
125 | 36 | ф10.5/ф13 | 40 | 122 | 155 | 230 | 09H1TB125A36CEPDX5015 |

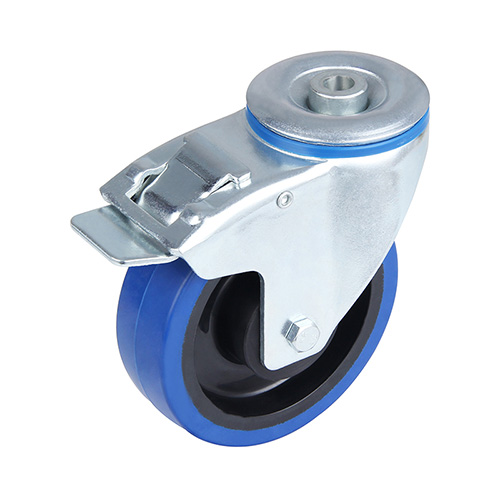

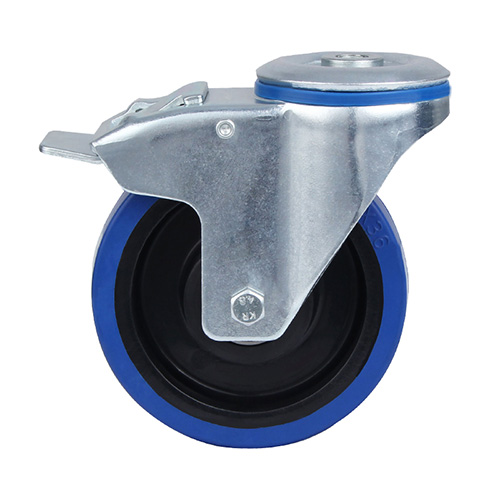

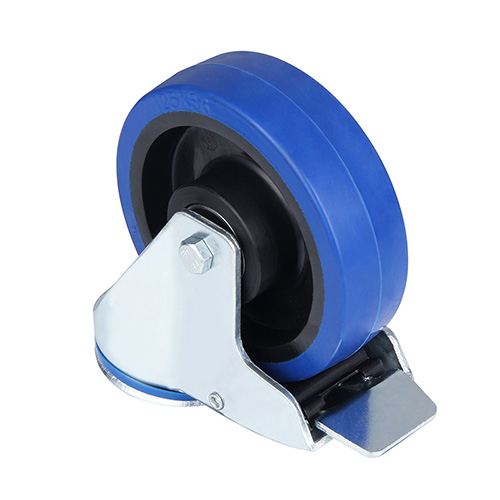

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
