Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 36 |
ф10.5/ф13 |
40 | 108 | 150 | 09H1S80A36CEPDX4015 |
100 | 36 |
ф10.5/ф13 |
40 | 132 | 180 | 09H1S100A36CEPDX4015 |
125 | 36 |
ф10.5/ф13 |
40 | 155 | 230 | 09H1S125A36CEPDX5015 |

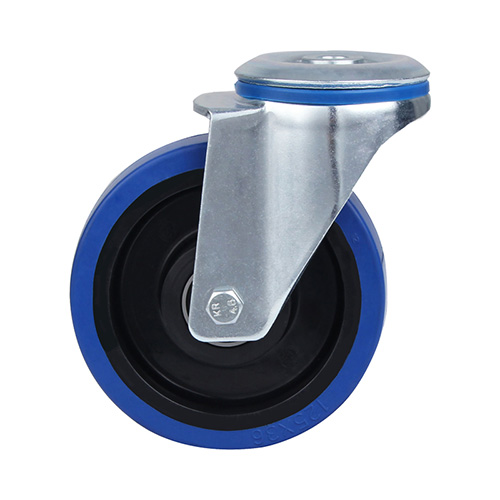

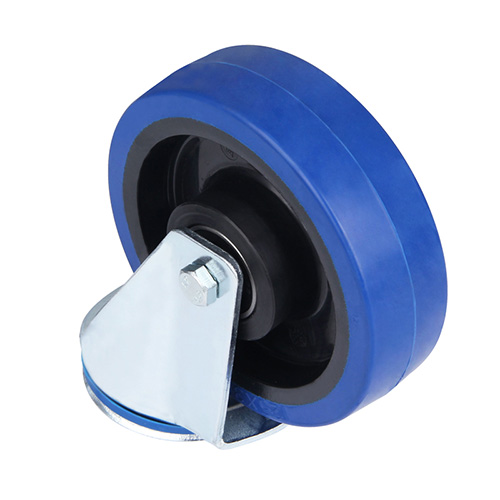

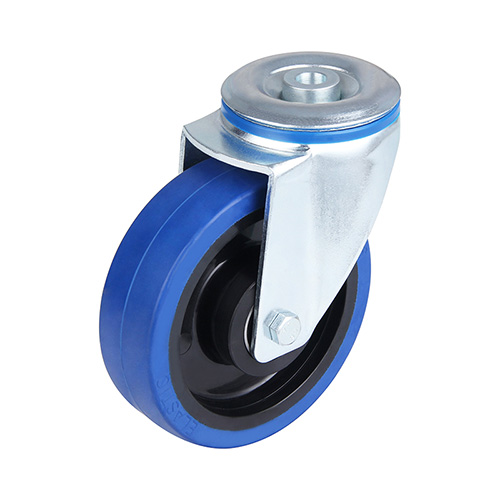

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
