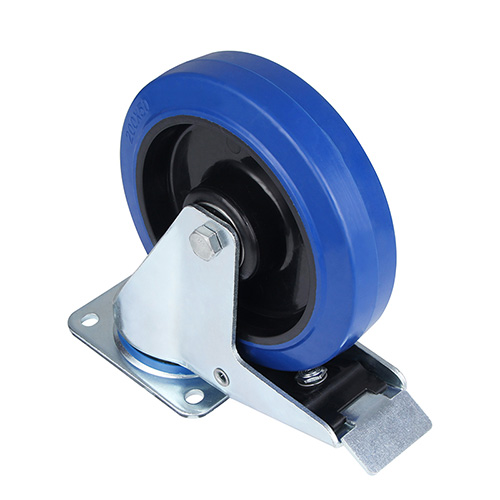

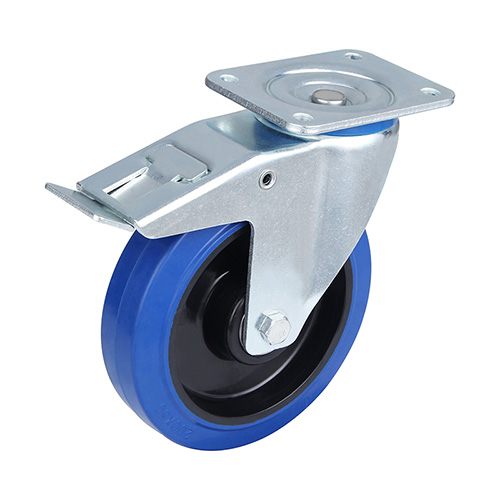

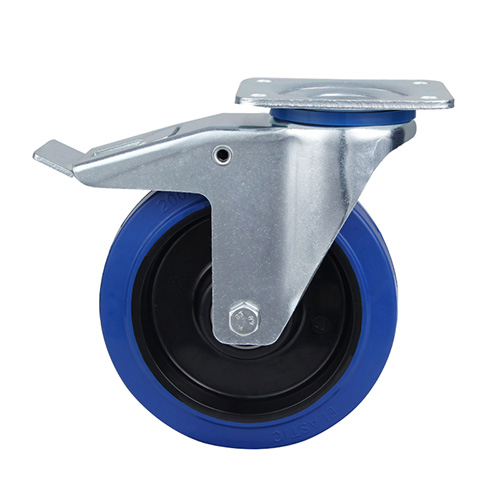

Blue Elastic Rubber Swivel Castor with total lock with Two Ball Bearings

Blue Elastic Rubber Swivel Castor with total lock with Two Ball Bearings

Industrial Castors , Blue

Housing

total_brake_castors

Wheel diameter

80, 100, 100, 125, 160, 200mm

Load capacity

150, 180, 180, 250, 300, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings

Chat Now

TECHNICAL DATA

Wheel Diameter	Width of Tread	Size of Plate	Plate hole centers	Plate hole	Offset	Swivel radius	Overall height	Load capacity	number
80	36	105x80	80x60	11X9	40	120	108	150	09P1TB80A36CEPDX4015
100	36	105x80	80x60	11X9	40	122	132	180	09P1TB100A36CEPDX4015
125	36	105x80	80x60	11X9	40	122	155	230	09P1TB125A36CEPDX5015
160	50	135x110	105x80	13.5x11	60	199	190	350	09P1TB160A50CEPDX6020
160	50	135x110	105x80	13.5x11	60	199	200	350	09P1TB/S160A50CEPDX6020
200	50	135x110	105x80	13.5x11	60	199	235	400	09P1TB200A50CEPDX6020
200	50	135x110	105x80	13.5x11	60	199	245	400	09P1TB/S200A50CEPDX6020

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
