Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|
80 | 36 | 105x80 | 80x60 | 11X9 | 40 | 108 | 150 | 09P1S80A36CEPDX4015 |
100 | 36 | 105x80 | 80x60 | 11X9 | 40 | 132 | 180 | 09P1S100A36CEPDX4015 |
125 | 36 | 105x80 | 80x60 | 11X9 | 40 | 155 | 230 | 09P1S125A36CEPDX5015 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 350 | 09P1S160A50CEPDX6020 |
160 | 50 | 135x110 | 105x80 | 13.5x11 | 52 | 200 | 350 | 09P1S/S160A50CEPDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 400 | 09P1S200A50CEPDX6020 |
200 | 50 | 135x110 | 105x80 | 13.5x11 | 54 | 245 | 400 | 09P1S/S200A50CEPDX6020 |

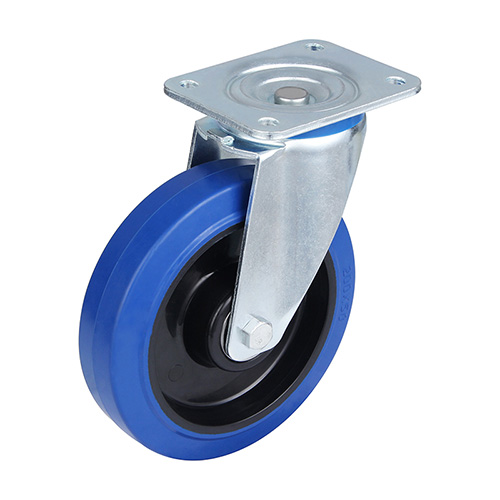

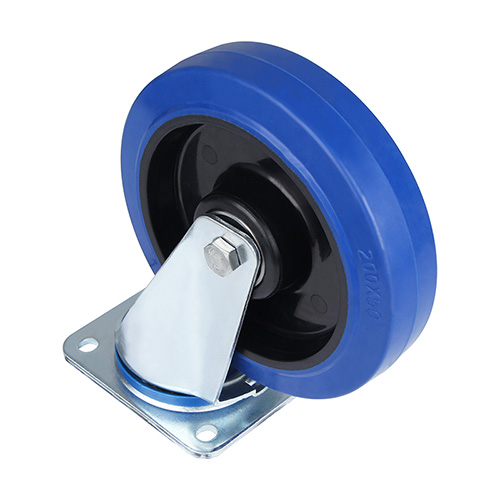

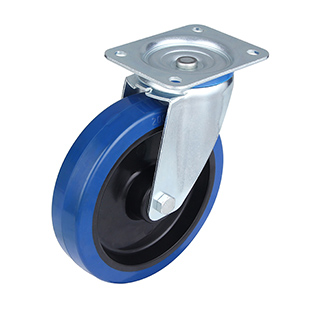

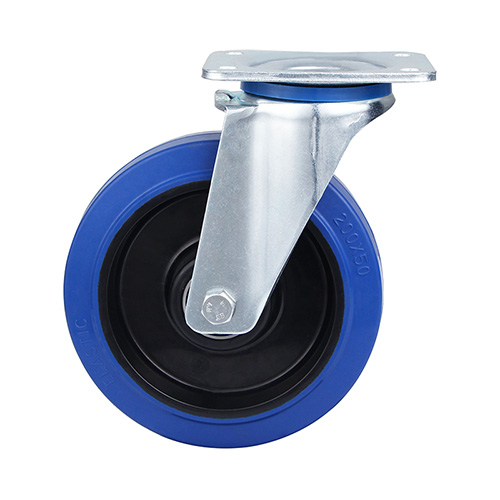

Pressed steel swivel fork , zinc-plated, double ball race ,sealed in the swviel head, black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
