Wheel Diameter |
Width of Tread |
Size of Plate |
Plate hole centers |
Plate hole |
Offset |
Swivel radius |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|---|---|
160 | 48 | 135x110 | 105x80 | 13.5x11 | 52 | 156 | 190 | 300 | 07P1CB160A48CEPRX6020 |
200 | 48 | 135x110 | 105x80 | 13.5x11 | 54 | 156 | 235 | 350 | 07P1CB200A48CEPRX6020 |

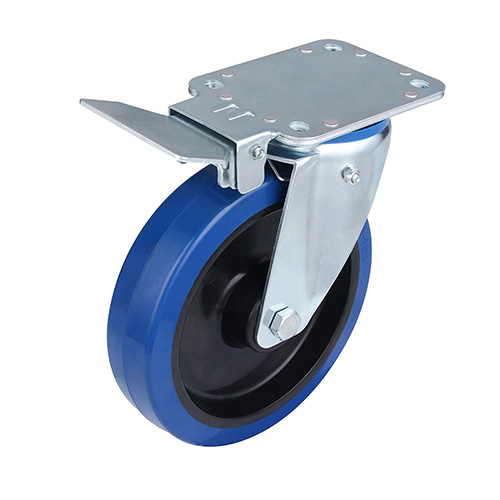

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
