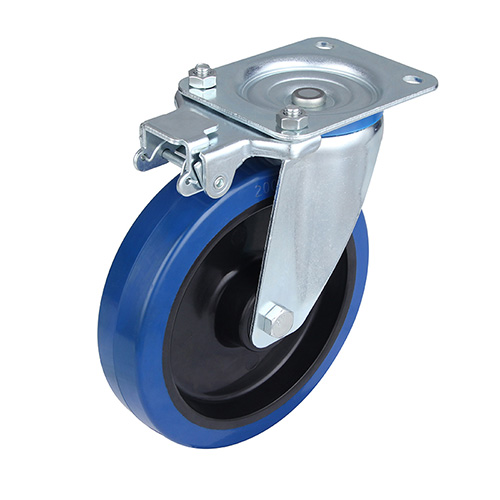

Blue Elastic Rubber Swivel Castor with Directional Lock with Polyamide Wheel Centre Blue Elastic Rubber Swivel Castor with Directional Lock with Polyamide Wheel Centre

Blue Elastic Rubber Swivel Castor with Directional Lock with Polyamide Wheel Centre

Housing

directional_lock_castors

Wheel diameter

160, 200mm

Load capacity

300, 350kg

Temperature

- 20 / + 60 °C

Standard

EN 12532

WarrantyHardness of tread

Shore A 68+5

Description

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing

Chat Now

TECHNICAL DATA


Wheel Diameter

Width of Tread

Size of Plate

Plate hole centers

Plate hole

Offset

Overall height

Load capacity
number
160 48 135x110 105x80 13.5x11 52 190 300 07P1DB160A48CEPRX6020
200 48 135x110 105x80 13.5x11 54 235 350 07P1DB200A48CEPRX6020

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing

Suitable Floor
Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
