Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 35 | 36 | ф10.5/ф13 | 99 | 130 | 07H1S80A35CEPRX4012 |
100 | 36 | 36 | ф10.5/ф13 | 124 | 180 | 07H1S100A36CEPRX4012 |
100 | 36 | 36 | ф10.5/ф13 | 127 | 180 | 07H1S/S100A36CEPRX4012 |
125 | 36 | 36 | ф10.5/ф13 | 154 | 230 | 07H1S125A36CEPRX5015 |
160 | 48 | 52 | ф16 | 185 | 300 | 07H1S160A48CEPRX6020 |
200 | 48 | 54 | ф16 | 230 | 350 | 07H1S200A48CEPRX6020 |

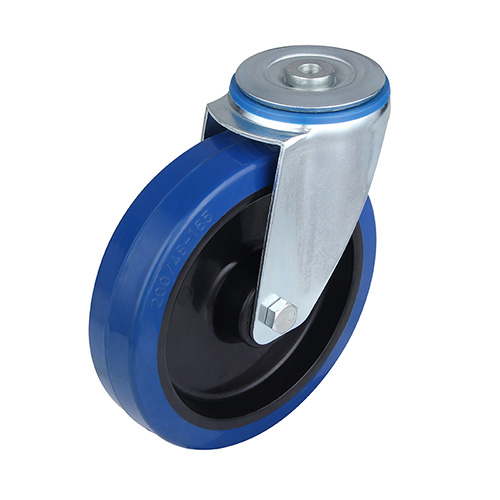

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
