 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 160 | 46 | 135x110 | 105x80 | 13.5x11 | 52 | 190 | 300 | 07P1DB160A46CETRX6020 |
| 200 | 46 | 135x110 | 105x80 | 13.5x11 | 54 | 235 | 350 | 07P1DB200A46CETRX6020 |

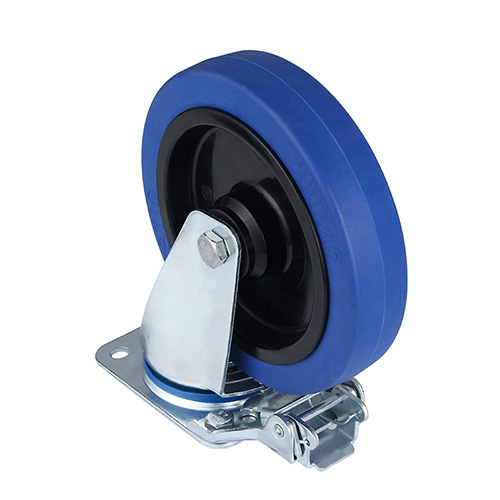

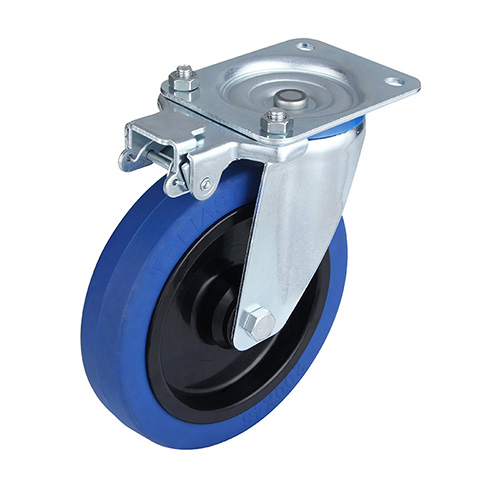

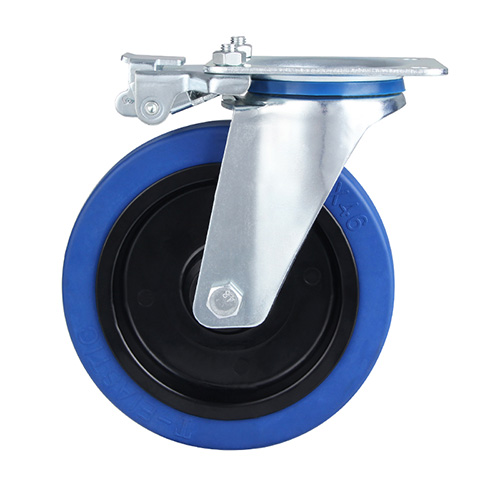

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
