 Wheel Diameter |
 Width of Tread |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 34 | 36 | ф10.5/ф13 | 124 | 160 | 07H1S100A34CETRX4012 |
| 100 | 34 | 36 | ф10.5/ф13 | 127 | 160 | 07H1S/S100A34CETRX4012 |
| 125 | 40 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125A40CETRX5015 |
| 160 | 46 | 52 | ф16 | 185 | 300 | 07H1S160A46CETRX6020 |
| 200 | 46 | 54 | ф16 | 230 | 300 | 07H1S200A46CETRX6020 |

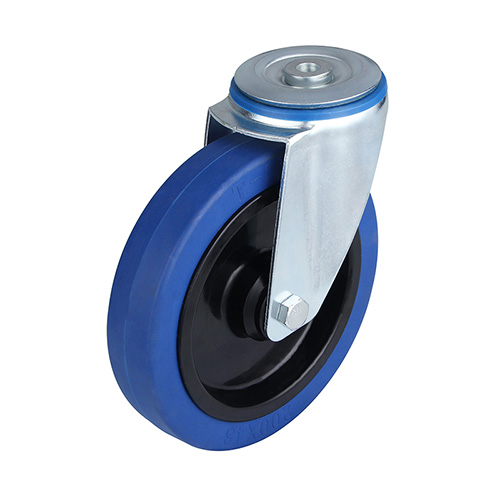

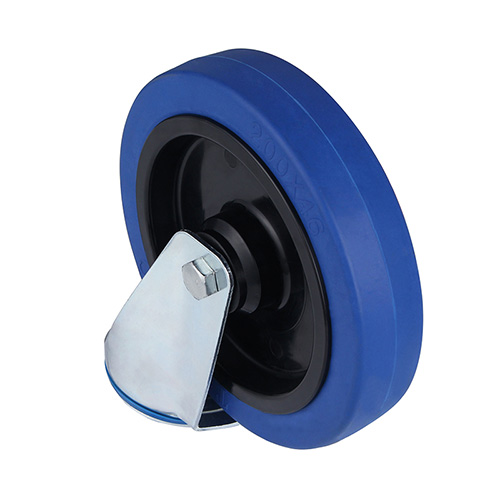

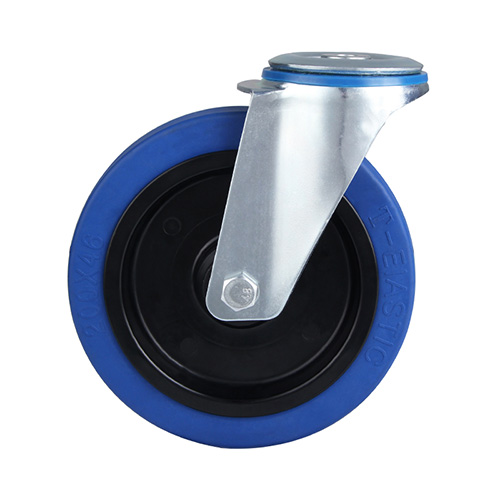

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, roller bearing
