![]() Wheel Diameter |
![]() Width of Tread |
![]() Offset |
![]() Hole center |
![]() Swivel raidus |
![]() Overall height |
![]() Load capacity |
number |
---|---|---|---|---|---|---|---|
80 | 35 | 36 | ф10.5/ф13 | 129 | 99 | 100 | 07H1TB80A36CEPBA4208 |
100 | 36 | 40 | ф10.5/ф13 | 132 | 124 | 120 | 07H1TB100A36CEPBA4208 |
100 | 36 | 40 | ф10.5/ф13 | 132 | 127 | 120 | 07H1TB/S100A36CEPBA4208 |
125 | 36 | 40 | ф10.5/ф13 | 134 | 154 | 250 | 07H1TB125A36CEPBA5210 |
125 | 38 | 40 | ф10.5/ф13 | 134 | 154 | 250 | 07H1TB125A38CEPBA5210 |

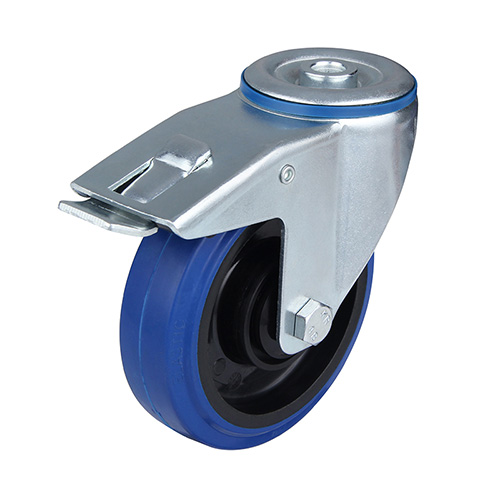

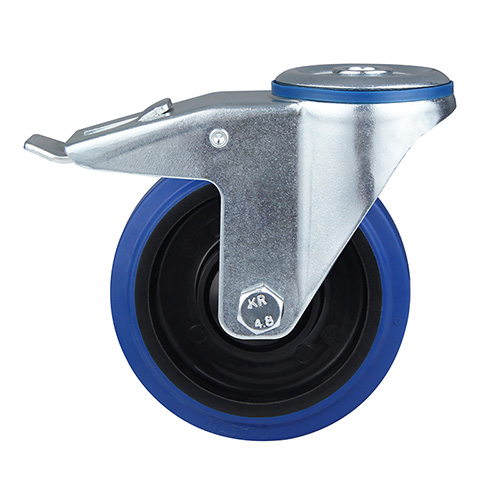

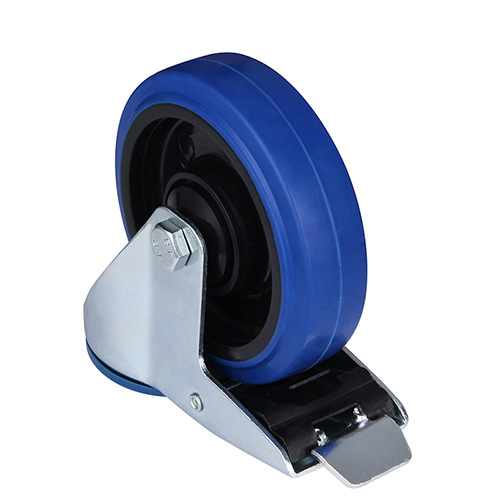

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, central ball bearing,black samll plastic thread guards
