Wheel Diameter |
Width of Tread |
Plate hole |
Offset |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|
80 | 36 | 36 | ф10.5/ф13 | 99 | 130 | 07H1S80A36CEPBA4208 |
100 | 36 | 36 | ф10.5/ф13 | 124 | 180 | 07H1S100A36CEPBA4208 |
100 | 36 | 36 | ф10.5/ф13 | 127 | 180 | 07H1S/S100A36CEPBA4208 |
125 | 36 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125A36CEPBA5210 |
125 | 38 | 36 | ф10.5/ф13 | 154 | 250 | 07H1S125A38CEPBA5210 |

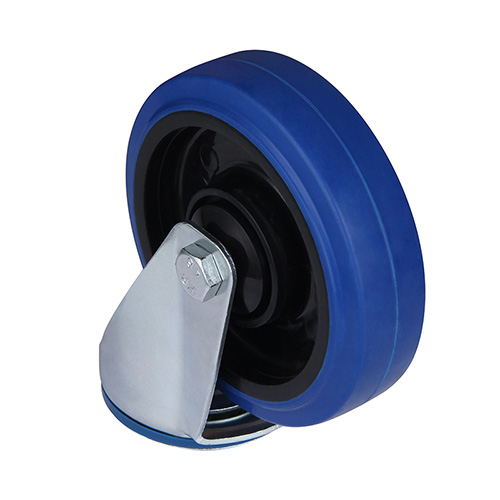

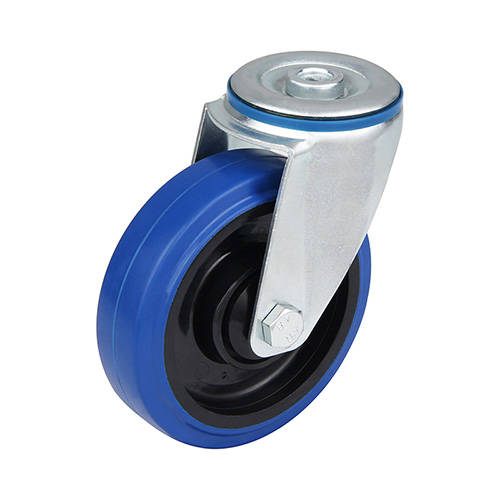

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber tread, central ball bearing,black samll plastic thread guards
