Wheel Diameter |
Width of Tread |
Offset |
Hole center |
Swivel raidus |
Overall height |
Load capacity |
number |
---|---|---|---|---|---|---|---|
100 | 34 | 40 | ф10.5/ф13 | 132 | 124 | 160 | 07H1TB100A34CETBA4208 |
100 | 34 | 40 | ф10.5/ф13 | 132 | 127 | 160 | 07H1TB/S100A34CETBA4208 |
125 | 40 | 40 | ф10.5/ф13 | 134 | 154 | 250 | 07H1TB125A40CETBA5210 |

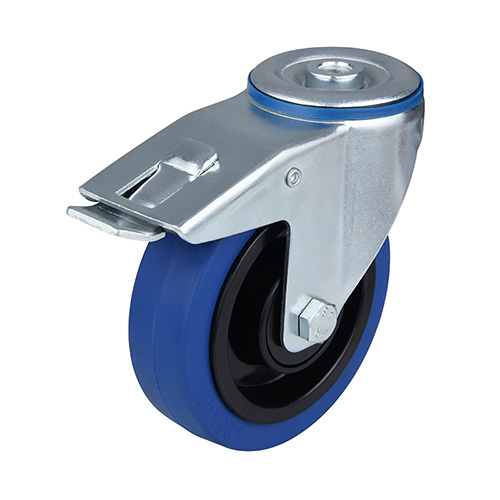

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, central ball bearing, black samll thread guards
