 Wheel Diameter |
 Width of Tread |
 Size of Plate |
 Plate hole centers |
 Plate hole |
 Offset |
 Overall height |
 Load capacity |
number |
|---|---|---|---|---|---|---|---|---|
| 100 | 34 | 105x80 | 80x60 | 11X9 | 36 | 125 | 160 | 07P1S100A34CETBA428 |
| 100 | 34 | 105x80 | 80x60 | 11X9 | 36 | 128 | 160 | 07P1S/S100A34CETBA428 |
| 125 | 40 | 105x80 | 80x60 | 11X9 | 36 | 155 | 250 | 07P1S125A40CETBA5210 |

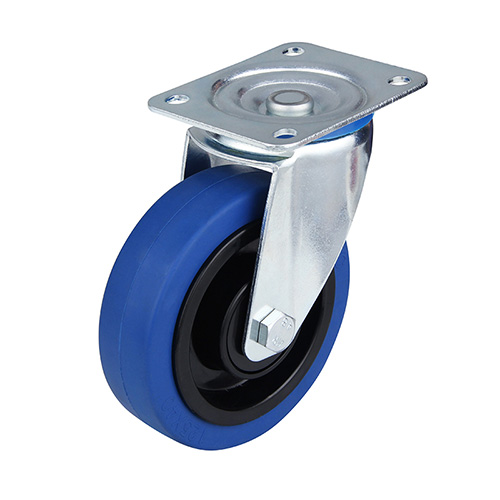

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel headblack polyamide wheel centre, shore a 68+5 blue elastic rubber tread, central ball bearing, black samll thread guards
