Housing
bolt_hole_castors_with_total_brake
Wheel diameter
100, 125mm
Load capacity
180, 230kg
Temperature
- 20 / + 80 °C
Standard
EN 12532
Hardness of tread
68+5 Shore A

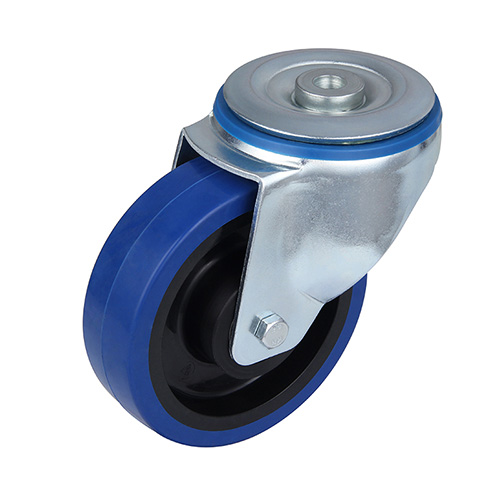

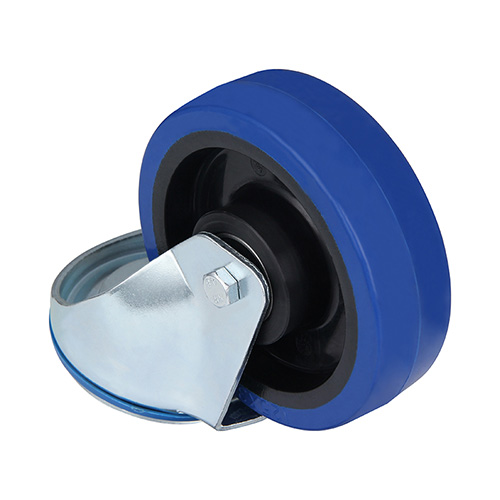

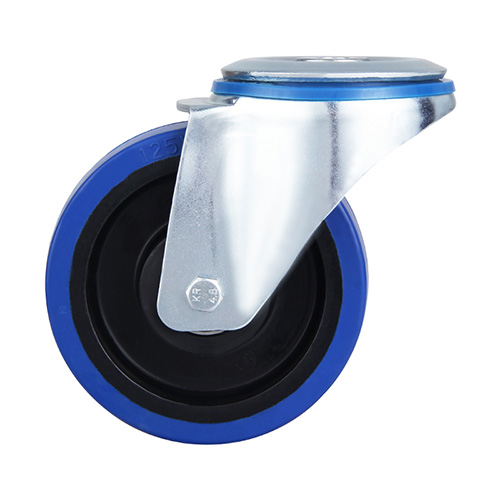

Pressed steel swivel fork , zinc-plated double ball race ,sealed in the swviel head, black polyamide wheel centre, shore a 68+5 blue elastic rubber thread, two ball bearings
 Wheel Diam |
 Tread Width |
 Bolt Space |
 Eccentricity Distance |
 Castor Height |
 Load Capacity |
number |
|---|---|---|---|---|---|---|
| 100 | 36 | 45 | ф16.8 | 128 | 180 | 06H1S100A36CEPDX |
| 125 | 36 | 48 | ф16.8 | 155 | 230 | 06P1S125A36CEPDX |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
